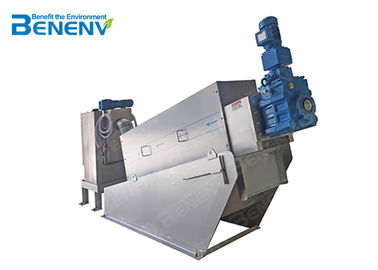

Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure

Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure
Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure

Large Image :  Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure

Product Details:
Place of Origin: China
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: MDS202
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood of wastewater treatment plant equipment
Delivery Time: 3-7 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99 Sets per 6 weeks

Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Brand Origin: Japan
Raw Material: SS304 Service Life: >15 Years
Electrical Components: Schneider, Omron Motor: Sumitomo, Nissei
Operation: 24 Hours Automatic Running Warranty: 2 Years
Application: Activated Sludge Dewatering, Especially For Oily Sludge Certificate: ISO 9000, CE Certificate
Product Name: Sewage Treatment Plant,Waste Water Treatment Sewage Treatment Plant/Package MBR Biological,Teenwin MBR Wastewater Treatment Plant,screw Sludge Dewatering Machine,lime Treatment Sludge Dewatering Machine Certification: CE,ISO 9000,SGS
Type: Biological Wastewater Treatment,Flat Sheet Memebrane,Screw Name: Sludge Dewatering Machine Screen Mesh Wastewater Treatment Machine
High Light:

sewage treatment machine

,

sludge press machine

,

Multi Disc WastewaterTreatment Plant Equipment

Multi-Disc Coal Washing Wastewater Treatment Machine Screw Press Sludge Dewatering


Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, one industrial wastewater treatment equipment it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.

Specifications of MDS sewage treatment and sludge dewatering machine
Main Parameters
Capacity
DS-kg/hr
1-600 DS-kg/hr
Size
mm
L4564*W2100*H2156
Power
kW
6.0
Motor
Gearbox
Brand
SEW,
SUMITOMO, NISSEI
Protection
Certificates & IP
UL,CE, Water
proof(IP65) CCC
Screw Shaft
Treatment
SUS316L, Tungsten
carbide coating
Control Cabinet
Electrical Components
Brand
Schneider, Omron,
Siemens
Solenoid Valve
Brand
US,ASCO
Spray System
Brand
Japan Origin, H.IKEUCHI

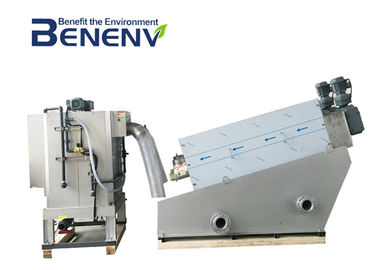

Product Display



Model Selection

Model
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)

Dissolved Air Flotation Sludge
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
Sludge Concentration (TS)

0.2%

1%

2%

5%

3%
MDS 051
~0.4 kg-DS/hr
(0.2 m³/hr)
~0.6 kg-DS/hr
(0.06 m³/hr)
~2 kg-DS/hr
(0.1 m³/hr)
~4 kg-DS/hr
(0.08 m³/hr)
~5 kg-DS/hr
(0.16 m³/hr)
MDS 101
~2 kg-DS/hr
(1.0 m³/hr)
~3 kg-DS/hr
(0.3 m³/hr)
~5 kg-DS/hr
(0.25 m³/hr)
~10 kg-DS/hr
(0.2 m³/hr)
~13 kg-DS/hr
(0.43 m³/hr)
MDS 131
~4 kg-DS/hr
(2.0 m³/hr)
~6 kg-DS/hr
(0.6 m³/hr)
~10 kg-DS/hr
(0.5 m³/hr)
~20 kg-DS/hr
(0.4 m³/hr)
~26 kg-DS/hr
(0.87 m³/hr)
MDS 132
~8 kg-DS/hr
(4.0 m³/hr)
~12 kg-DS/hr
(1.2 m³/hr)
~20 kg-DS/hr
(1.0 m³/hr)
~40 kg-DS/hr
(0.8 m³/hr)
~52 kg-DS/hr
(1.73 m³/hr)
MDS 202
~16 kg-DS/hr
(8.0 m³/hr)
~24 kg-DS/hr
(2.4 m³/hr)
~40 kg-DS/hr
(2.0 m³/hr)
~80 kg-DS/hr
(1.6 m³/hr)
~104 kg-DS/hr
(3.47 m³/hr)
MDS 311
~20 kg-DS/hr
(10 m³/hr)
~30 kg-DS/hr
(3.0 m³/hr)
~50 kg-DS/hr
(2.5 m³/hr)
~100 kg-DS/hr
(2.0 m³/hr)
~130 kg-DS/hr
(4.33 m³/hr)
MDS 312
~40 kg-DS/hr
(20 m³/hr)
~60 kg-DS/hr
(6.0 m³/hr)
~100 kg-DS/hr
(5.0 m³/hr)
~200 kg-DS/hr
(4.0 m³/hr)
~260 kg-DS/hr
(8.67 m³/hr)
MDS 313
~60 kg-DS/hr
(30 m³/hr)
~90 kg-DS/hr
(9.0 m³/hr)
~150 kg-DS/hr
(7.5 m³/hr)
~300 kg-DS/hr
(6.0 m³/hr)
~390 kg-DS/hr
(13 m³/hr)
MDS 412
~80 kg-DS/hr
(40 m³/hr)
~120 kg-DS/hr
(12 m³/hr)
~200 kg-DS/hr
(10 m³/hr)
~400 kg-DS/hr
(8.0 m³/hr)
~520 kg-DS/hr
(17.3 m³/hr)
MDS 413
~120 kg-DS/hr
(60 m³/hr)
~180 kg-DS/hr
(18 m³/hr)
~300 kg-DS/hr
(15 m³/hr)
~600 kg-DS/hr
(12 m³/hr)
~780 kg-DS/hr
(26 m³/hr)



Dewater Principle

    After gravity concentration in the concentrating section, the sludge is transported to the dewatering section. During the process of advancement, as the filter gap and pitch gradually decrease, and the blocking effect of the back pressure plate, internal pressure is generated, and the volume is continuously reduced to reach sufficient Purpose of dehydration.

1.The main body of the dewatering machine is a filtering device formed by the fixed ring and the swimming ring being laminated on each other, and the spiral shaft penetrating therethrough. The front section is the concentration section, and the rear section is the dewatering section.

2. The filter gap formed between the fixed ring and the swimming ring and the pitch of the screw shaft gradually become smaller from the concentrated part to the dewatered part.

3. While the rotation of the screw shaft pushes the sludge from the thickening section to the dewatering section, it also continuously drives the swimming ring to clean the filter gap to prevent clogging.

4. After the gravity concentration in the concentration part, the sludge is transported to the dewatering part. During the process of advancement, as the filter slit and pitch gradually become smaller, and the blocking effect of the back pressure plate generates a great internal pressure and volume Constantly shrink to achieve the purpose of full dehydration.



Cooperation Case

Application in Various Industry of wastewater treatment equipment

Exclusive pre-concentration design, applicable for sludge of concentration from 2000mg/L to 50000mg/L. Besides, Due to the innovation of the structure design, it is highly suitable to oil sludge


Related Products

Multi Disc WastewaterTreatment Plant Equipment Type Of Sludge Coal Washing Clog Free Structure 2

Company Information

Jiangsu Benenv Environmental Protection Technology Co., Ltd. is an environmental protection company, specialized in mechanisms, environmental engineering and other related science. With research center in Japan, we have factory and office in China. Benenv specializes in the design, engineering, supply and installation of domestic and commercial water, waste water and sewage treatment systems, gas pollution control, and other environmental engineering products. Our company possesses complete sets of process design, equipment supply, constructions, and technology innovation. Overall, we are highly qualified in delivering turnkey and BOT projects for any industry. We have abundant experience in the treatment of industrial, domestic and commercial hazard wastewater. Benenv is staffed with local and overseas professionals with more than 15 years of acquired technical expertise and experience, offering various technologies and allied services. Our company works closely with the top 10 universities and scientific institutes to keep our cutting-edge technology and transform science and technology into productivity. Our company also works with the government, and is authorized as the liaison office of Yixing government to perform technology cooperation with foreign countries

Packaging and Delivery  for wastewater treatment equipment



1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2.We also support 20',40' container delivery, use soft packaging to protect sewage treatment equipment machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Q: What’s MDS Sludge Dewatering?

A: MDS Sludge Dewatering machine has been used in Japan market for over 30 years, is a mature technology. It was developed in our Japanese research center (Japan Benenv Co., Ltd.). We have Japanese engineers for technical support and quality control, other Chinese manufacturers they are just copy-cats from this Japanese technology, they are not original and lack of experience on this technology.

Q: How to choose the right model?

A: Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.

Q: What type of sludge is MDS Sludge Dewatering applicable to?

A: It is applicable to various kinds of sludge such as waste activated sludge, dissolved-air floatation sludge and so forth. The thickening mechanism of this equipment enables dewater not only highly-concentrated sludge but also low-concentrated sludge with ease.

Q: What’s the equipment used together with MDS Sludge Dewatering?

A: Sludge pump, polymer dosing pump, washing pump, air compressor.

Q: Why aren’t your rings carbonized like other companies’?

A: Carbonization is to harden and strengthen the metal surface. Our rings material is called 304 hardened steel (SUS304H), which is directly treated by our steel supplier, this hardened stainless steel can make the hardness of carbonized steel up to HV380-420 in China. Most of other manufacturers can reach to only HV250. This hardened steel SUS304H is 3 times expensive than normal SUS304, so other manufacturers they prefer to choose the normal material and need to increase the thickness of rings in order to increase the hardness, actually, increase the thickness of rings will affect the dewatering effects.

Q: What’s the application scope of MDS Sludge Dewatering?

A: It is widely applied in Municipal water and wastewater treatment plants, Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants, Food/beverage production plants, Dairy farming/Meat processing plants, Chemicals manufacturing plants, Machinery manufacturing/Metal processing plants, Paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc..

Q: What’s the material of MDS Sludge Dewatering?

A: It is Stainless Steel, we choose SUS304H, SUS316L, etc, some key parts we import from Japan, we also have our own workshop in Japan for production.
