SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running

SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running
SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running

Large Image :  SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: HZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export standard package or customer reqiurment
Delivery Time: 2-6 weeks
Payment Terms: T/T
Supply Ability: 500 Sets per year

SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running

Description
Water Depth H3: 1.0 M Color: Sliver Ect
Materials: SUS304 Or SUS316 Installation Angle: 60~85°
Motor Band: SEW Or NISSEI Material: Carbon Steel Or Stainless Steel
Application: Sludge Treatment,Water Treatment Service Life: >10 Years
Voltage: Customize
High Light:

mechanical coarse bar screen

,

mechanical fine screen

SS Auto Mechanical Bar Screen For Industrial Wastewater Treatment Plant



Introduction

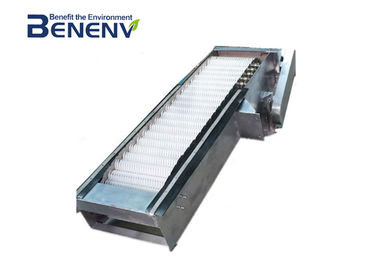

HZ1 Rotary Rake Screen (Also called as rotary solid-liquid separator), is an advanced solid-liquid separation device which has been widely used in municipal wastewater treatment plant,pre-treatment device for domestic effluents, municipal rainwater & sewage pump station,water intake of water supply plant & cooling water of power plant. It can also be used for industrial waste water treatment, such as textile, printing and dyeing, food, fisheries, paper making, brewing, slaughtering and tanning industry. It is regarded as the ideal solid-liquid separation equipment in water

treatment field.



Structure& Working Principle

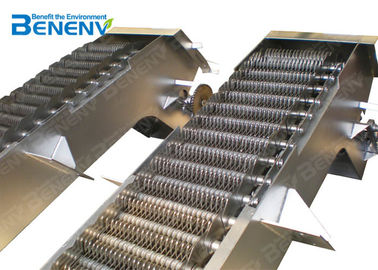

The rotary screen is installed at the inlet of pump station or water treatment system. It is composed of pedestal, specific plough shaped tines, rake plate, elevator chain and motor reducer units etc. It is assembled into different spacing according to different flow rate. The rake plate, which is fixed in the elevator chain, starts clockwise movement under the drive of the driving device, hooking residue from down to up together with the elevator chain. Under the effect of steering guide and guiding wheel, residue gets discharged by gravity while the rake plate reached the top of screen. The rake tines moved to the bottom of the equipment and starts to work for another round, residue moves continuously.



SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running 0


Product Details

Material SS304/316
Certification CE/ISO 9001
Grid gap 1mm-15mm
Operation automatic
Width&Depth Customize
Power 0.55-3.0 kw
Motor SEW or NISSEI
Electrical component Schneider/Omron/Siemens
Warranty 1 year
After-sale service engineers available
Product Keywords rakes screens,bar screentical bar screens



Water Flow Sheet

SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running 1



Introduction and Applications

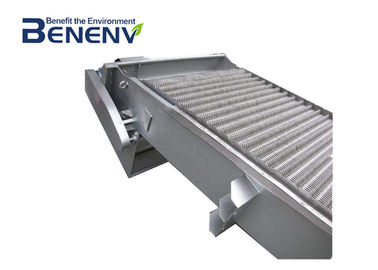

Mechanical bar screen machine (grilling spotter) is a kind of solid-liquid separation device, which can continuous automatic eliminate all kinds of figure sundries in the fluid, which can as a special equipment widely used in urban sewage treatment,water supply industry, electric plant water inlet, at the same time, it can be as a essential special equipment in the production processing of textile, food processing, paper making, leather etc industry, it is the most advanced Solid-liquid separation equipment in china. Rotary grilling machine also called bar screen spotter.

Advantage/Main Features
1) High-Automaticity, good separation effect, low power, no noise, good anti-corrosion.
2) Continuous and stable running with no attendance.
3) There is overload safety device. It can cut the shear pin when screen is overloaded.
4) Excellent self-cleaning ability so due to good structure.
5) Reliable and safe operation so it just need a little maintenance work.


Installation Sizes

SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running 2





Packaging and Delivery



1.Before packing, all our screens must be covered by plastic film, to protect machine from any damage like water.



2.After checking and wrapping, the screen will be placed into a good fumigation chamber with shipping mark



SS 304/316 Durable Mechanical Bar Screen Continuous And Stable Running 3



FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
