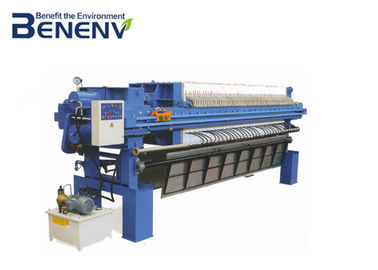

Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment

Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment
Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment

Large Image :  Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: BNPF-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export standard package or customer reqiurment
Delivery Time: 4-9weeks
Payment Terms: T/T
Supply Ability: 200 Sets per year

Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment

Description
Filter Area: 40 M² Pressure: 1 MPa
Materials: TPE Service Life: 5 Years
Warranty: 2 Years Usage: Sewage Treatment、Sludge Treatment
High Light:

chamber filter press

,

plate and frame filter press

Printing And Dyeing Wastewater Treatment Used Membrane Filter Press Machine



Introduction

Filter press is a kind of mud treatment equipment developed for solid liquid separation in industrial production. It is mainly used in chemical, ceramic, petroleum, pharmaceutical, food, smelting and other industries, as well as industrial filtration and sewage slurry treatment. This equipment has the advantages of convenient operation and maintenance and reliable operation. The mud cake filtered by the filter press has a higher solid content and an excellent separation effect.



Structural Advantages

Van filter plate

1. The filter plate is made of reinforced polypropylene, with overall variable cross-section design, so that its flow resistance is small, the flow rate is fast, and the filtering efficiency is higher than that of the same filter plate;


2. Adopt special raw material formula and pressing process, equipped with 4000 ton high pressure hydraulic press, and the mechanical performance indexes of the filter plates are higher than the relevant national standards;


3. The filter plate is made of TPE elastomer and alkali free glass fiber polypropylene, which makes the filter plate have the elasticity of rubber filter plate, and enhance the toughness and rigidity of polypropylene filter plate. After being processed by CNC machining center, the flatness of filter plate is less than 25 μ m, which makes the filter plate have good sealing performance when it is pressed, and there is no spray or leakage when it is fed.

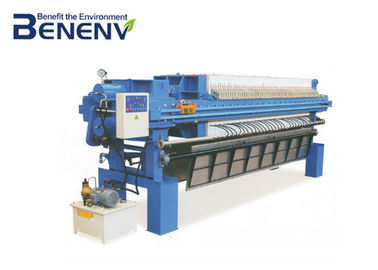

Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment 0



Working principle

LDHB filter press is extruded through the plate frame, so that the water in the sludge is discharged through the filter cloth to achieve the purpose of dehydration. In operation, under the pressure of the feed pump, the liquid to be filtered is sent to each filter chamber, and the solid and liquid are separated by a filter medium (selecting a suitable filter cloth according to different industries). The filter residue is formed on the filter cloth until the filter chamber is filled to form a filter cake.
The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet hole passage, and is discharged centrally. After the filtration is finished, the filter press is opened to remove the filter cake (the filter cake is stored between the adjacent two filter plates), and the filter cloth is cleaned. Re-tighten the plate filter to start the next working cycle. This continuously cycles through the work to achieve the purpose of solid-liquid separation.




Model

Feed Material

concentration

(%)

Filter Area

(m²)

Power

(KW)

Capacity

(t/h)

Weight

(kg)

Overall Dimension

(mm)

G50-80 20-40 50 15 0.80-1.60 3456 4110*1400*1230
G80-80 20-40 80 15 1.32-2.60 4584 4990*1400*1230
G100-100 20-40 100 24 1.70-4.00 6628 4900*1900*1600
G150-125 20-40 150 27.5 2.50-5.00 9800 6010*2000*1600
G200-125 20-40 200 35.5 3.00-7.00 12500 7050*2260*1600
G250-125 20-40 250 44.5 4.00-8.00 14000 7890*2260*1600
G300-125 20-40 300 52.5 5.00-7.00 25000 8800*2260*1925
G400-150 20-40 400 62.5 6.00-10.00 30000 10670*2260*1925
G500-150 20-40 500 82.5 8.00-12.00 36500 12650*2260*1925

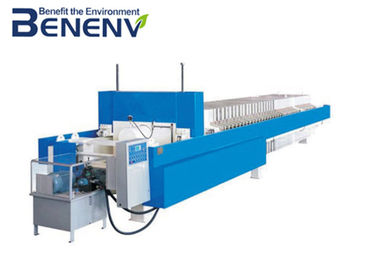

Industrial Filter Press Equipment Printing And Dyeing Wastewater Treatment 1



Automatic cleaning device



The automatic cleaning device of filter cloth of filter press mainly uses high-pressure water to wash the remaining materials in the pore of filter cloth, so as to restore the permeability of filter cloth and improve the filtering speed and service life of filter cloth.



The filter cloth automatic cleaning device is highly automatic, which reduces the labor intensity of manual cleaning of filter cloth.



Application



Urban sewage sludge, tap water sludge, dredging sludge, industrial sludge, industrial solid waste,Chlor alkali, inorganic salt, rayon viscose, glycerin, silica, dye, pigment, silicic acid, sodium sulfate,Manganese sulfate, iron hydroxide, titanium dioxide, fluorine chemical industry, lithium chemical industry, silicon carbide, nickel cobalt chemical industry,Non ferrous metals, metal tailings, clean coal, tail coal, non-metallic ore

Wine, rice wine, alcohol, edible oil, citric acid, fruit juice pectin, soy sauce, syrup,All kinds of starch, concentrated soup, seaweed gum, beer wort, palm oil, beet sugar, sucrose,Pharmaceutical intermediates, APIs, Chinese patent medicines, fermentation broth, enzyme preparations



Packing and Delivery



1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.

2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
