Product Details:
|
| Water Speed: | 0.8 M/s | Depth Of The Channel: | 500 Mm |
|---|---|---|---|
| Materials: | SUS304 Or SUS316 | Delievery Time:: | After Get The Deposit Within 15days |
| Installation Angle: | 35° | Motor Band: | SEW Or NISSEI |
| Keywords: | Automatic Bar Screen | Operation: | Automatic |
| High Light: | automatic bar screen,mechanical fine screen |
||

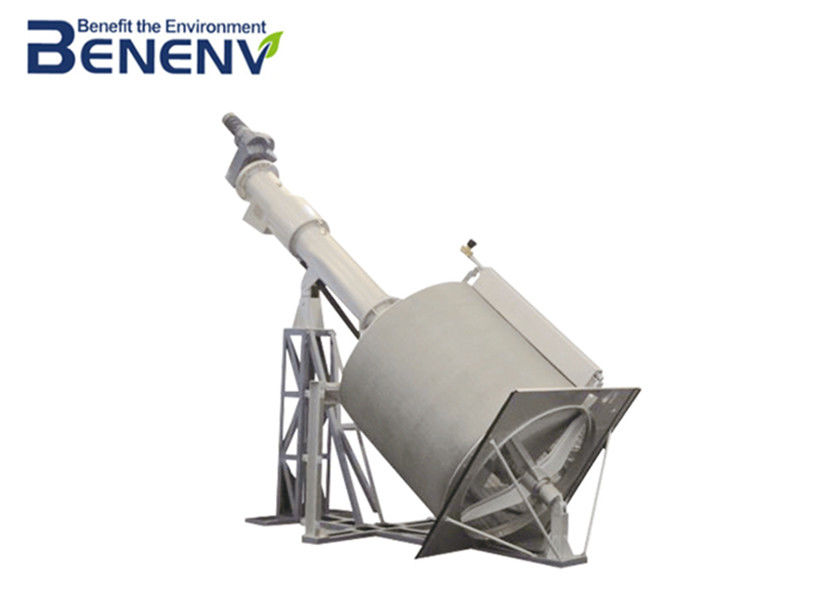

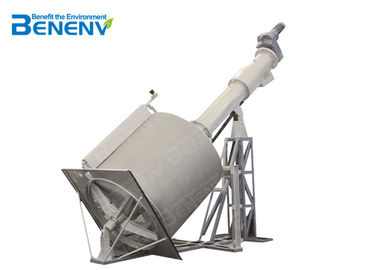

SUS304 Automatic Rotary Drum Waste Water Treatment Mechanical Bar Screen
Introduction
OA1 rotary drum screen is a new type of product developed & produced by BENENV which absorbed foreign advanced technology & combined actual condition of domestic water treatment, it is the fine screen which integrates residue collecting, conveying and dewatering together and have been widely used for municipal wastewater treatment plant. The rotary drum screen is composed of round shaped bar screens, the installation angle is 35°. Residues get blocked and stored on the screen surface while flowing by, and scraped to the top of the screen by tooth shaped scraper which is driven by motor. Residue blocked by deslagging plate dropped into the collecting hopper & delivered by central screw conveyor, and finally fell into waste cart from discharge outlet for outward transport.
Model & Installation Dimensions
Main Features
(1) With neat structure & low space occupancy, easy to operate & maintenance.
(2) Bar spacing can be designed between 6 to 12mm.
(3) High residue capture capacity, fully enclosed transport, no pollution to the environment.
(4) Automatic running with low noise.
(5) Self-cleaning while running, without clogging.
Water Flow Sheet
Installation Sizes
1, rake 2, collecting hopper 3, screen body 4, deslagging plate 5, screw conveyor 6, conveyor & squeeze drum 7, backflow pipe 8, bracket 9, cleaning drum 10, cleaning drum
11, discharge outlet
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
