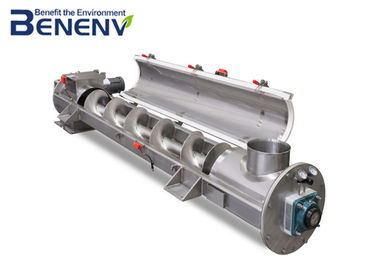

Large Image :  High Capacity Shaftless Screw Conveyor Convenient Installation Easy Maintenance

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: WLS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiatable
Packaging Details: Standard packing of K1 K3 media Kalenes media bio filter media MBBR for Fish Farm
Delivery Time: 2-4 weeks
Payment Terms: T/T
Supply Ability: 1000 Cubic Meter/Cubic Meters per Month K1 K3 media Kalenes media bio filter media MBBR for Fish Farm

High Capacity Shaftless Screw Conveyor Convenient Installation Easy Maintenance

Description
Screw Diameter: Φ185 Mm Materials: SUS304 Or SUS316
Warranty: 2 Years Service Life: >10 Years
Application: Waste Water Treatment Motor: Bauer, Nissei, Sew
High Light:

shaftless screw conveyor convenient

,

convenient shaftless screw conveyor

Easy Maintenance High Capacity Shaftless Screw Conveyor



Introduction

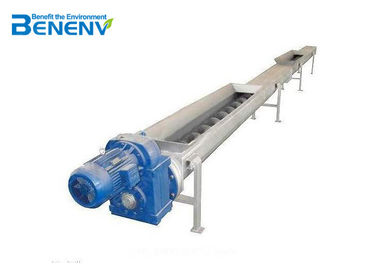

WLS shaftless screw conveyor is used for the disposal of scum in municipal wastewater treatment plant, residential sewage pretreatment unit, municipal rainwater/wastewater and waterworks etc. And it usually works as ancillary device for screenings, dewatering machines etc. Scum dropped from screenings or discharge outlet of dewatering machine will be delivered from one end to another end under drive of motor rotary drum and connect with trash can for further disposal.



Model & Installation Dimensions



High Capacity Shaftless Screw Conveyor Convenient Installation Easy Maintenance 0

High Capacity Shaftless Screw Conveyor Convenient Installation Easy Maintenance 1



Main Features



(1) The driving device adopts parallel shaft helical gear reducer, with low noise and easy to maintain.



(2) Direction of transportation is determined by the rotating direction of spiral blade& motor which can realize bidirectional-transportation.



(3) The lined U-shaped tank, with high abrasive resistance performance and long lifespan, is easy to replace.



(4) No clogging exists, low noise and easy for to maintain.



Installation Drawing



High Capacity Shaftless Screw Conveyor Convenient Installation Easy Maintenance 2



Product details



Certification SGS/CE/ISO 9001
Horizontal Rotation speed 18rpm
Incline Rotation speed >18rpm
Material SS304/316
Screw diameter 380mm
Conveying length customize
Motor Power 1.1-3KW
Operation Full automatic
Protection Level IP55 F
Warranty 1 year
Product Keywords slurry screw conveyor,sludge transportion,sludge cake conveyor



High Capacity Shaftless Screw Conveyor Convenient Installation Easy Maintenance 3



Packing and Delivery



1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
