SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

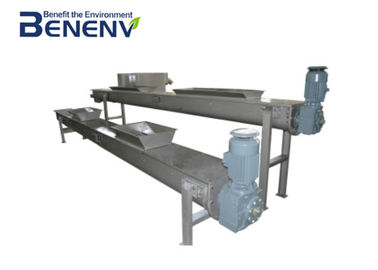

SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine

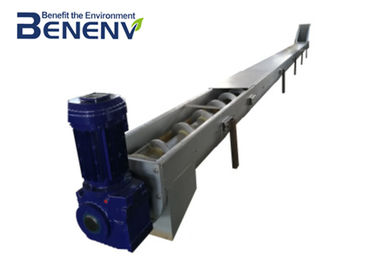

SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine

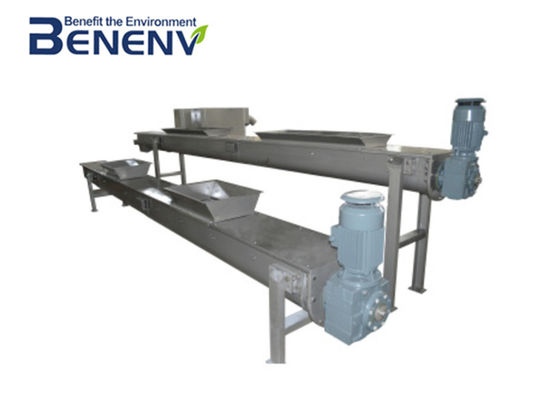

SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine

Large Image :  SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: WLS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiatable
Packaging Details: Standard packing of K1 K3 media Kalenes media bio filter media MBBR for Fish Farm
Delivery Time: 2-4 weeks
Payment Terms: T/T
Supply Ability: 1000 Cubic Meter/Cubic Meters per Month K1 K3 media Kalenes media bio filter media MBBR for Fish Farm

SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine

Description
Installation Angle: 0-25° Screw Diameter: Φ185 Mm
Screw Rotating Speed: 12-16 R/min Materials: SUS304 Or SUS316
Warranty: 2 Years Service Life: >10 Years
High Light:

mud screw feeder machine

,

mud automatic screw feeder machine

,

SS304 auto screw feeder machine

SS304 Wastewater Treatment Shaftless Screw Conveyor Sludge/mud Cake Transfer

Introduction


Dewatering screw conveyors are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors can horizontal transport materials, also it can slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.


Model & Installation Dimensions

SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine 0

Technical parameters


ModelWLS150WLS200WLS250WLS300WLS400WLS500
Screw diameter(mm)150184237284365470
Casing pipe diameter180219273351402500
Operating angle(α)≤30°≤30°≤30°≤30°≤30°≤30°
Max delivery length(m)121316182225
Capacity(t/h)2.479131828



Motor

ModelL≤7Y90L-4Y100L1-4Y100L2-4Y132S-4Y160M-4Y160M-4
Power1.52.235.51111
ModelL>7Y100L1-4Y100L2-4Y112M-4Y132M-4Y160L-4Y160L-4
Power2.2347.51515


Main Features


1. Fully automatic electric protection can be co-controlled with Bar Rack Cleaner
2. Compact in structure, convenient installation with expansion bolts
3. Using wear-resisting materiel bars in trough, its examining and repairing is convenient
4. Closed running make the noise low and surroundings better
5. Its length, angle and discharging hopper can be manufactured according to customers
requirements
6. The spiral blades are made of stainless steel and have big strength and good resistant to corrosio

Product Application:

1. Ceramic industry: clay, silica, sand, polishing materials, etc.
2. Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.
3. Plastics industry: plastic powder, plastic particles, etc.
4. Wood industry:wood chips, wood sawing surface and byproducts, etc.
5. Environmental: the filter material, fly ash, fixed residue, waste, etc.
6. Agriculture:livestock feed, food, powder, etc.


Installation Drawing

SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine 1

Product details


CertificationSGS/CE/ISO 9001
Horizontal Rotation speed18rpm
Incline Rotation speed>18rpm
MaterialSS304/316
Screw diameter380mm
Conveying lengthcustomize
Motor Power1.1-3KW
OperationFull automatic
Protection LevelIP55 F
Warranty1 year
Product Keywordsslurry screw conveyor,sludge transportion,sludge cake conveyor


SS304 Shaftless Screw Conveyor Mud Cake Transfer Screw Feeder Machine 2

Packing and Delivery

1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.


Why Choose Us?



1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.

2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.

3. We only use the best parts from best supplier.

4. We have our own R&D center and complete manufacture system.
