Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance

Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance
Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance

Large Image :  Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: KDS-1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood
Delivery Time: 6~8 weeks
Payment Terms: T/T
Supply Ability: 30 Sets per month

Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance

Description
Application: Activated Sludge Dewatering, Especially For Oily Sludge Capacity: 1-280 DS-kg/hr
Weight: 600 Kg Power: 1.5 KW
Material: SUS304 Or SUS316 Motor Brand: SEW Or NISSEI Or Sumitomo
Electrical Components Brand: Schneider, Omron, Siemens Warranty: 2 Years
High Light:

sludge dewatering press

,

sludge belt filter press

Highly Efficient Energy Saving Gravity Belt Thickener Filter Press Machine

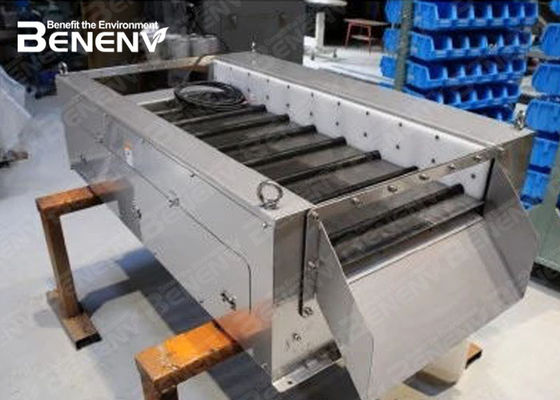

Product Introduction of KDS Sludge Thickening Machine

KDS Sludge Thickening Machine is a revolutionaly new sludge thickening press of the news technology from Japan. BENENV focus on integrating the best resources worldwide since the day it is founded. Thus we are also one step forward of the market.
KDS sludge thickening machine is of large throughput, self-cleaning function by slits opposite continuos rotation, no vibration and noise, and very low power consumption. Besides, the structure is very simple, thus the operation and maintenance is easy.
Its brand new thickening technology enables automatically self-cleaning for the filter gap during sludge thickening and thickening. So this machine has stable and constant throughput without need of backwash water to prevent clog. This self-cleaning mechanism enables KDS sludge thickening machine to be an effective machine for oily and grease sludge.

Working Principle
Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 0


Sludge Thickening And Dewatering Machine Advantages

No Clog and backwash
Solid-liquid seperation and self-cleaning function are carried out simultaneously by oval discs rotation between filtrate gap

Stable Treatment capacity
Continuos cleaning process avoids throughput reduction which could easily occur in other dewatering equipments

Large Throughput
Smooth rotation of oval discs enables large transportload

Easy Maintenance
Due to the simple strcuture, the maintenance is easy


Thickener Model

Model DN Oval Discs Column Numbers Capacity m³/h Sludge (reference) kg-DS/h Power Weight
      1.0 mm 1.0 mm 3.8Ф380V
SS-312 300 mm 12 23 49 0.2 kW 1/160 110 kg
SS-412 400 mm 12 30 67 0.2 kW 1/160 200 kg
SS-512 500 mm 12 38 83 0.2 kW 1/160 210 kg
SS-612 600 mm 12 45 100 0.4 kW 1/160 230 kg
SS-712 700 mm 12 74 160 0.4 kW 1/160 380 kg
SS-812 800 mm 12 86 185 0.75 kW 1/160 410 kg
SS-912 900 mm 12 98 210 0.75 kW 1/160 440 kg
SS-1012 1000 mm 12 107 230 0.75 kW 1/160 470 kg
SS-1212 1200 mm 12 130 280 1.5 kW 1/160 600 kg


Applications
· Food wastes treatment in school feeding center for scraps of food processing;
· Fishery wastes treatment;
· Crusher drainage waste disposer;
· Process before treatment wastewater;
· Drain water off devise from food etc;
· Primary filtration for wastes coming from grease traps;
· Enrichment screen before dehydration;
· Dehydrator;



Solid-liquid separation for oil waste etc;

Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 1



Primary treatment for wastes produced from livestock etc.

Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 2



Crushed wastes collection such as plastic etc.





Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 3



Construction sites where sludge is treated by dewatering equipment screw press sludge image is before and after treatment.

Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 4



Purification of lakes and rivers
. Primary treatment
. Sediment and sludge treatment



Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 5



Application Fields

Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 6



Packing and Delivery



1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2.We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Sludge Thickening Filter Press Machine Large Throughput Easy Maintenance 7



Below is BENENV Service Items:



Pre-sale

1. According to your needs, select right model for you.

2. According to your special requirements, design customized solution and manufacture customized products for you.

3. Welcome your visit.

Sale

1. Sign contract, pay deposit, we arrange production.

2. Product acceptance.

3. Help you formulate construction scheme.

After-sale

1. Assign engineer service for you on-site freely.

2. Install and adjust device, train how to operate.

3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
