Home ProductsWastewater Treatment Tank

Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

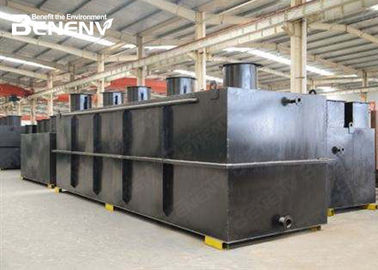

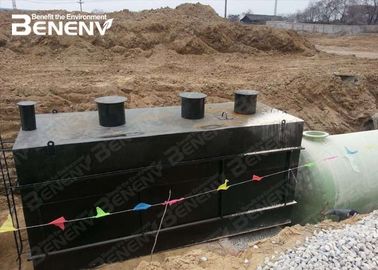

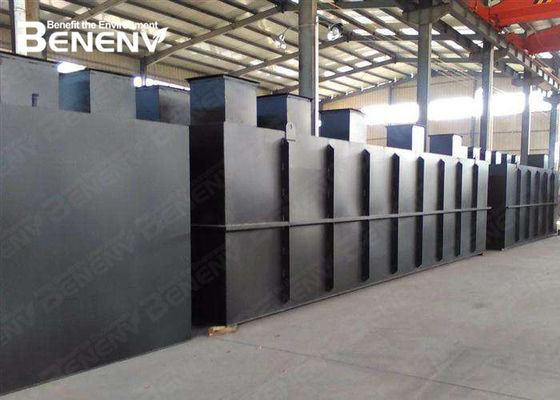

Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency

Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency
Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency

Large Image :  Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: WSZ-AO-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export standard package or customer reqiurment
Delivery Time: 2-6 weeks
Payment Terms: T/T
Supply Ability: 300 Set/Sets per year

Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency

Description
Capacity: 1-50m³ Weight: 9 Ton
Power: 1.5 KW Warranty: 1 Year
Materials: SUS304 Or SUS316 Delievery Time:: After Get The Deposit Within 15days
High Light:

sewage treatment tank

,

sewage treatment plant equipment

Water Treatment Gravity Clarifier Wastewater Precipitation Tank In Sewagewater



Brief introduction

Lamella clarifier also called inclined plate sediment tank, is used to separate sedimentable solid (sedimentable particles) from liquids.
It is kind of high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment.
Such tank can improve sediment efficiency 50~60%, it can improve treatment capacity 3~5 times in the same area. It can design different flow rate inclined plate sediment device according to raw wastewater test report, it need dose flocculant usually.



Application



In certain instances when it is not feasible to connect residences or units to public sewer systems, communities may opt for a clustered wastewater treatment system. Such facilities are smaller versions of centralized treatment plants and serve only a limited number of connections. The technologies used for clustered wastewater treatment may be the same as those used for centralized systems or for individual on-site systems, depending upon the specific applications and degree of treatment required. Upon treatment, effluent from clustered wastewater systems can be discharged via surface or subsurface disposal methods.



Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency 0



Wastewater reuse



Wastewater can be a valuable resource in cities or towns where population is growing and water supplies are limited. In addition to easing the strain on limited freshwater supplies, the reuse of wastewater can improve the quality of streams and lakes by reducing the effluent discharges that they receive. Wastewater may be reclaimed and reused for crop and landscape irrigation, groundwater recharge, or recreational purposes. Reclamation for drinking is technically possible, but this reuse faces significant public resistance.



There are two types of wastewater reuse: direct and indirect. In direct reuse, treated wastewater is piped into some type of water system without first being diluted in a natural stream or lake or in groundwater. One example is the irrigation of a golf course with effluent from a municipal wastewater treatment plant. Indirect reuse involves the mixing of reclaimed wastewater with another body of water before reuse. In effect, any community that uses a surface water supply downstream from the treatment plant discharge pipe of another community is indirectly reusing wastewater. Indirect reuse is also accomplished by discharging reclaimed wastewater into a groundwater aquifer and later withdrawing the water for use. Discharge into an aquifer (called artificial recharge) is done by either deep-well injection or shallow surface spreading.



Quality and treatment requirements for reclaimed wastewater become more stringent as the chances for direct human contact and ingestion increase. The impurities that must be removed depend on the intended use of the water. For example, removal of phosphates or nitrates is not necessary if the intended use is landscape irrigation. If direct reuse as a potable supply is intended, tertiary treatment with multiple barriers against contaminants is required. This may include secondary treatment followed by granular media filtration, ultraviolet radiation, granular activated carbon adsorption, reverse osmosis, air stripping, ozonation, and chlorination.



The use of gray-water recycling systems in new commercial buildings offers a method of saving water and reducing total sewage volumes. These systems filter and chlorinate drainage from tubs and sinks and reuse the water for nonpotable purposes (e.g., flushing toilets and urinals). Recycled water can be marked with a blue dye to ensure that it is not used for potable purposes.



Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency 1



Specifications and Models

Model WSZ-AO-3 WSZ-AO-5 WSZ-AO-10 WSZ-AO-15 WSZ-AO-20 WSZ-AO-25 WSZ-AO-30 WSZ-AO-50

Water in

BOD5(mg/L)

200

Water out

BOD5(mg/L)

10
Capacity(m³/h) 3 5 10 15 20 25 30 50
Weight(t) 9 16 35 41 48 54 60 85



Packing and Delivery



1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.

2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.



Gravity Clarifier Sewage Treatment Plant Equipment High Efficiency 2



Why Choose Us?

1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.
2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
The normal lead time is 7-15 days, which depends on your quantity.
