Stainless Steel Carbonisation Furnace Low Noise Environmental Friendly

Stainless Steel  Carbonisation Furnace Low Noise Environmental Friendly
Stainless Steel  Carbonisation Furnace Low Noise Environmental Friendly Stainless Steel  Carbonisation Furnace Low Noise Environmental Friendly

Large Image :  Stainless Steel Carbonisation Furnace Low Noise Environmental Friendly

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: BMT-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Container
Delivery Time: 6-10 weeks
Payment Terms: T/T
Supply Ability: 10 Sets per Years

Stainless Steel Carbonisation Furnace Low Noise Environmental Friendly

Description
Water Vaporation: 50-2500 Kg/hr Size: L4800*W3200*H3000 Mm
Power: 15 KW Materials: SUS304 Or Q235
Motor Brand: SEW Electrical Components Brand: Schneider, Omron, Siemens
Tail Gas Treatment: Spray Tower,Fabric Filter , Quench Tower Energy Sources: Oil , LNG , LPG
High Light:

carbonization machine

,

charcoal powder making machine

New Second Generation Environmental Continuous Carbonization Furnace Carbonized



Continuous Carbonization Furnace



The performance of a carbonization furnace is the decisive factor to define a perfect carbonization process. Lingheng brand professional furnace accepts wide-ranged raw materials. Almost all the biomass wastes can be carbonized, such as wood, wood chips, coconut shells, straws,sawdust, rice husk, fruit peel and even municipal sewage sludge, etc. Through the process of carbonization, biomass wastes be converted into charcoals and flammable gas under high-temperature.



Technological principle

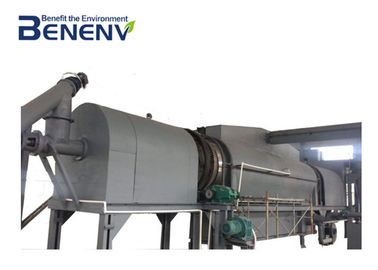

The carbonization furnace is a horizontal rotating body, which uses indirect heating method. The hot blast furnace at its side generates high temperature and heats the rotatable furnace body. The materials in the furnace body decompose under low oxygen condition, producing a large amount of retort gas, which is led into the combustion chamber by the induced draft fan for secondary combustion. The materials are transported from the end of the furnace body, and the output end is provided with belt There is a product condensation and collection system to collect the product after cooling; the high-temperature flue gas from combustion is pumped to the super dryer for drying sludge. In terms of tail gas treatment, when the temperature in the combustion furnace reaches above 800 ℃, the dry distillation gas can be completely burned to achieve harmless treatment. After the exhaust gas is cooled by a water-cooled heat exchanger, it is dedusted by a cyclone and discharged into the atmosphere.

Stainless Steel  Carbonisation Furnace Low Noise Environmental Friendly 0

After processed by the advanced carbonizing furnace, the biomass materials will be converted into charcoal, tar, wood vinegar, and some combustible gas. All of the final products are useful resources and can be widely used in many areas.



Features of Carbonization Furnace



Auto feeder and water-cooled screw discharging machine are configured to realize constant production for 24 hours.

The flammable gas produced during carbonizing process can provide heat for drying host and carbonization host at the same time, largely improve heat utilization.

De-dusting system and purifying system make the flue gas discharges can meet the international environmental emission standard.

Different organics have different components and water content, so the quality of charcoal carbonized from them are quite different.

The temperature of the furnace is above 700℃.Higher temperature, higher production.

Protective materials are added to the casing of the furnace to prevent the operator from hurting by the high temperature.

Central control system is optional,it could realize the separation of operator and the furnace, so to ensure the safety of the operator.



Working Process of Continuous Charcoal Furnace



1. Pretreat biomass less than 50mm by crushing machine.



2. Biomass pretreated is fed into drying system by automatic conveying system. Fuel of our drying system sources from flue gas waste heat produced biomass carbonization process. Hot air is lead into dryer. Raw material is dried step by step, with mode of screw-feeding and batch splitting.



3. Then the biomass dried will automatically fall into continuous carbonization furnace. Temperature for carbonization is about 400 to 600 degree Celsius. The higher the temperature, the greater the yield; the faster the carbonization rate, the lower the operation cost.



4. Charcoal will be discharged and collected by professional equipment after through water cooling system. Temperature of charcoal discharged is about 30 degree Celsius. Biogas is collected by special equipment after it has been purified with dry or wet multistage purification, or it can be recycled as fuel for heating carbonization furnace. Wood tar and wood vinegar are collected by professional collecting system.



Stainless Steel  Carbonisation Furnace Low Noise Environmental Friendly 1



Work Flow of Carbonization Furnace

  1. The big bulks biomass waste should be shredded by a wood shredder or wood crusher at first. Usually, the diameter should be ≦ 200 mm and the thickness ≦ 30 mm.
  2. The biomass will be feed into the drying host automatically by constant weight feeder. If the biomass material contain water, it should be dried until the water content is < 20%.
  3. The biomass will automatically fall down to the carbonization host and the furnace will start the process of carbonization.
  4. The main processes of carbonization furnace: high-temperature pyrolysis, smoke discharge, sulfur releasing and carbon collection.
  5. Charcoal will be discharged from the powder discharge port.
  6. Combustible gas generated during biomass carbonization process will flow to the cyclone dust collector. After spraying and de-dusting, it will be separated into wood tar and wood vinegar and used as fuel to heat the carbonization host from the outside.
  7. The residual gas produced during the heating will also be collected to heat the drying system.



End Products Area Usage
Charcoal Daily life * widely used as fuel in BBQ.
    * used as fuel in other area.
  Agriculture * attach heavy metal to improve the quality of soil.
  Industry * can be reprocessed into activated carbon.
    * used for construction bricks with clay.
    * widely used as fuel in industries such as steel and iron factories, ceramics, etc.
Gas Daily life * widely used as fuel.
  Agriculture * greenhouse agriculture heating.
  Industry * used as fuel for heating or drying.
    * can be used for generator to get electricity.
Wood vinegar, tar Industry * belongs to high temperature resistant and waterproof, the great materials in shipbuilding and paint industry.
    * used as raw materials in chemical and medicine.
  Agriculture * used as plant nutrition regulates auxin or insecticide.

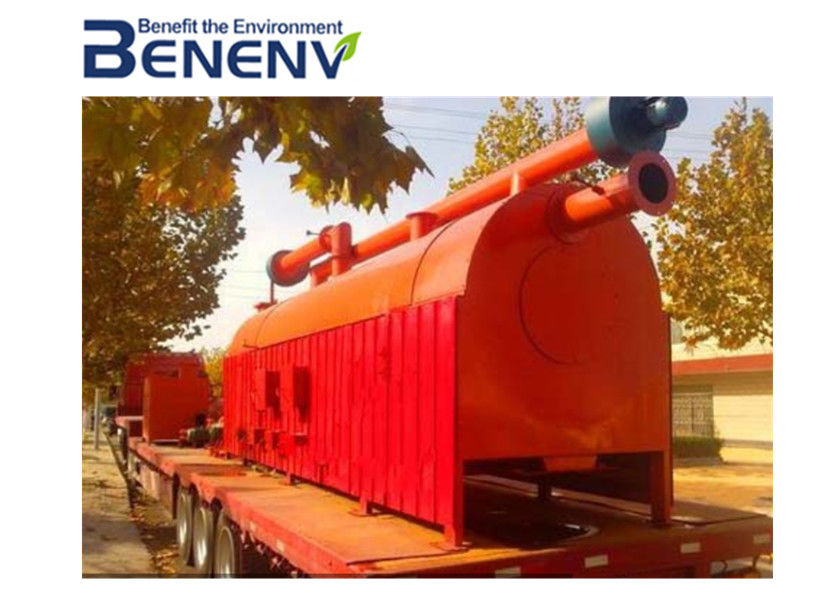

Packing and Delivery



1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Stainless Steel  Carbonisation Furnace Low Noise Environmental Friendly 2


Below is BENENV Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
