Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

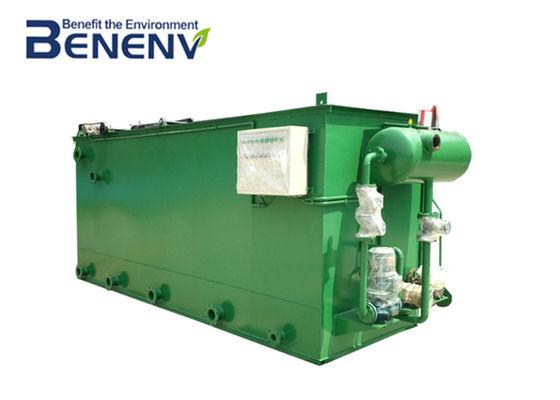

Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment

Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment
Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment

Large Image :  Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BENENV
Certification: SW17Q10916R0S
Model Number: CWT926
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood
Delivery Time: 3-6 weeks
Supply Ability: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment

Description
Application:: Activated Sludge Dewatering, Especially For Oily Sludge Certificate: ISO 9000, CE Certificate
Operation:: Automatic Electrical Components:: Schneider, Omron
Warranty:: 2 Years Service Life:: 15 Years
Brand Origin:: Japan After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

package sewage treatment plant

,

domestic wastewater treatment plant

,

MBBR Wastewater Treatment System

Compact MBBR Wastewater Treatment System For Effluent Treatment Plant



Brief Introduction


    Integration pointwise prefabricated underground Sewage Treatment Equipment is the equipment which has all sewage treatment equipment underground. There are only administrative offices and remote operation over the ground. So it is more evident to save the land. We can construct public green land and green landscape to meet the requirements of green space allocation. We can also preserve more open space for city.



The goal of Integration pointwise prefabricated underground Sewage Treatment Equipment is the whole collection, the whole process, no open, non-ozone pollution, no noise. It is help to improve the problem of secondary pollution caused by traditional sewage treatment. At the same time, due to the use of point-source layout, it is not only avoid the sewage pipe network construction, but also solve the serious pollution of urban environment and groundwater which caused by the existing sewer leakage.



Model Water capacity(m3/h) Reference outside size(L*W*H) mm Qty(set) Weight(T) Air volume(m3/min)
AUMBR-0.5 0.5 3000*1500*2000







1

1.5 0.15
AUMBR-1 1 4000*1500*2000 1.7 0.3
AUMBR-2 2 5000*2000*2000 2.5 0.6
AUMBR-3 3 7000*2000*2500 3.5 0.9
AUMBR-5 5 10000*2500*2500 4.5 1.5
AUMBR-10 10 16000*2500*2500 8.4 3
AUMBR-20 20 16000*2500*2500 2 16.8 6



Several usage methods of integrated sewage treatment equipment:

1. Be able to treat the comprehensive wastewater of living system and its similar organic wastewater;

2. It is made of glass fiber reinforced plastic and stainless steel, with excellent properties of corrosion resistance and anti-aging, and its service life is over 50 years;

3. The whole set of equipment is simple in construction and easy in operation. All the mechanical equipment is controlled by automation.

Equipment features:

1. The underground surface area of the equipment can be used as green land to save the floor space for the hospital.

2. The integrated sewage equipment is made of anti-corrosion and anti-oxidation materials, which has a long service life and saves operating costs for the hospital.

3. With the combination of biological contact oxidation tank and layer upon layer filtration and disinfection device, the sewage treatment effect is good and the pathogen transmission problem is solved.

4. The equipment has a good deodorization effect and produces a small amount of sludge, which will not cause other pollution hazards to the environment.

5. Fully automatic control system, installation of damage alarm system, no manual supervision, save labor input.

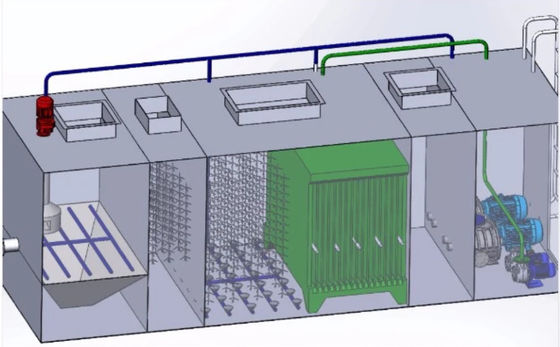

Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment 0
Working Principle

Principle of action of contact oxidation bed

1) Adsorption: during the growth and propagation of aerobic microorganisms on the filler, the intersections form biofilms with large surface area and high concentration, which can absorb most of the organic pollutants in the water and reduce the concentration of pollutants;

2) Uptake and decomposition: in the case of continuous air ventilation into the reactor, aerobic microorganisms can absorb absorbed organic pollutants as nutrients and metabolize them, partly for their own growth and reproduction, and partly for carbon dioxide and water.

3) Contact with the oxidized bed further reduced the concentration of organic pollutants in rural sewage, and the removal rate of CODcr and BOD5 in effluent reached more than 80%, which could meet the national secondary standard for sewage discharge.

How the sedimentation tank works

1) Gravity is used to make the suspended sludge with a greater proportion of water in the outlet water of the contact oxidation bed sink to the bottom of the pool, so as to remove it from the water and ensure better effluent water quality;

2) Settling to the bottom of the sludge and automatically returning to the contact oxidation bed to maintain the sludge concentration of the contact oxidation bed.

3) The disinfection tank USES solid chlorine to disinfect the water, which can effectively kill bacteria, escherichia coli, viruses and other pathogenic microorganisms in the water. The treated water is clear and transparent, with no odor.

Installation and maintenance:

1. Foundation: If WSZ series equipment is placed above the floor, only a concrete floor with the same shape as the equipment needs to be prepared as the foundation. The foundation pressure must be greater than 4T/m2, and it should be horizontal and smooth. If the equipment is buried below the floor, the elevation of the foundation shall be less than or equal to the elevation of the equipment and no water is allowed to accumulate in rain.

2, Installation: According to the installation diagram in place, each box in place in turn, the position and direction of the box should not be put wrong, spacing each other should be accurate, and connected to the pipeline. Fill the equipment with clean water and check whether there is any leakage in the pipes. If there is no leakage, cover the box with soil until the equipment checks the holes and level the ground. Connect the control line of the electric control box to the water pump, connect the electric control box to the power supply, pay attention to the fan, motor steering, and the direction indicated by the fan.

Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment 1
Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment 2

Application of integrated sewage treatment equipment:

1. Hotels, restaurants and nursing homes;
2. Residential communities, villages and market towns;
3. Station, expressway service area, harbor wharf and ship;
4. Factories, mines, troops, tourist spots and scenic spots;
5. Industrial organic wastewater similar to domestic sewage, such as food industry.

Packing and Delivery


1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.

2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Integrated MBBR Compact Wastewater Treatment System Sewage Treatment Equipment 3



Why Choose Us?



1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.

2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.

3. We only use the best parts from best supplier.

4. We have our own R&D center and complete manufacture system.
