Product Details:
|
| Product Name: | Compact Structure Gravity Sludge Thickener Totally Enclosed Robust Design | Type: | Screw |
|---|---|---|---|
| Capacity: | 1-280 DS-kg/hr | Weight: | 600 Kg |
| Power: | 1.5 KW | Material: | SUS304 Or SUS316 |
| Motor Brand: | SEW Or NISSEI Or Sumitomo | Electrical Components Brand: | Schneider, Omron, Siemens |
| Warranty: | 2 Years | Application: | Activated Sludge Dewatering, Especially For Oily Sludge |
| High Light: | gravity sludge thickener,sludge dewatering press |
||

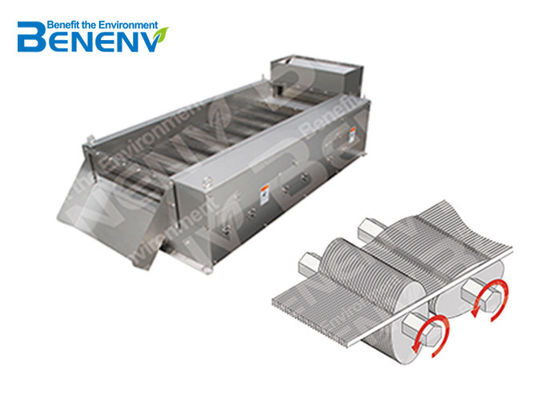

Product Introduction of KDS Sludge Thickening Machine
Thickening is often the first step in a sludge treatment process. Sludge from primary or secondary clarifiers may be stirred form larger, more rapidly settling aggregates. Function of gravity thickeners are very similar to settling tanks. Solids settle via gravity and compact on the bottom, whereas water flows up over lashers. Gravity thickeners also provide some solids stabilization and storage, which may be beneficial to downstream operations. Smooth up-flow weir design provides uniform distribution of slurry across the entire width of the belt. A large filtration area provides high efficiency thickening and cost-effective chemical utilization.
| Sort of Sewage | Type of Slurry | Sludge Inlet Consistentency |
Polymer Powder Consumption (kg/Ton D.S.) | Water Content Rate of Sludge Cake (%) |
| Paper & Pulp Sewage |
Chemical Slurry | 2.0 ~ 5.0 | 2.0~4.0 | 64~78 |
| Activate Slurry | 1.5~3.0 | 3.0~5.0 | 75~84 | |
| Printing&Dyeing Sewage | Chemical Slurry | 1.5~2.5 | 3.0~5.0 | 76~84 |
| Activate Slurry | 1.0~2.0 | 4.0~6.0 | 80~85 | |
| Leather & Tannery Sewage | Chemical Slurry | 2.5~4.0 | 3.0~5.0 | 74~83 |
| Activate Slurry | 1.5~2.5 | 4.0~6.0 | 78~85 | |
| Electronic-Plating Sewage | Chemical Slurry | 1.5~2.5 | 3.0~5.0 | 72~84 |
| Metal-Processing Sewage | Chemical Slurry | 2.0~4.0 | 3.0~5.0 | 66~84 |
| Stone & Mining Sewage | Chemical Slurry | 5.0~10 | 3.0~5.0 | 45~75 |
| Food & Beverage Sewage | Activate Slurry | 0.8~1.5 | 4.0~6.0 | 78~85 |
| Livestock Sewage | Anaerobic Fermentation | 3.0~6.0 | 5.0~8.0 | 75~83 |
| Slaughter House Sewage | Admixture, Surplus Slurry | 1.0~3.0 | 4.0~6.0 | 75~85 |
| Excretion Sewage | Digestion, Surplus Slurry | 1.0~3.0 | 4.0~6.0 | 74~85 |
| Water Purifying Sewage | Chemical Slurry | 1.5~4.5 | 3.0~5.0 | 64~82 |
| Municipal Sewage | Surplus Slurry | 0.8~1.5 | 4.0~6.0 | 78~85 |
| Admixture Slurry | 1.5~2.5 | 3.0~5.0 | 72~85 |
Working Principle
The sludge thickener works on the principle of separating liquid from solids by gravity drainage through a slowly rolling belt cloth. It uses a sludge polymer mixing valve with an adjustable lever arm to ensure sufficient turbulent sludge/polymer mixing.
After this, the ramp feeding section delivers a consistent load across the filtration area to maximize filtration properties.
A sludge retention tank, also known as the flocculation chamber, is filled from the bottom and then rises up over a weir to ensure even distribution onto the belt. Sludge ploughs force the sludge into lanes, which allows free water to run through the belt cloth where sludge is not present, thus enhancing the pre-dewatering process. Sludge ploughs can be lifted to allow for removal of rags etc.
The result is excellent thickening in a totally-enclosed, low-odour unit.
Sludge Thickening And Dewatering Machine Advantages
1. Reduce the volume of sludge, thereby reducing waste disposal cost
2. Low energy use and polymer consumption
3. Lower labour cost and cost of change, thanks to minimal need for operator attention and maintenance
4. Totally-enclosed, low-odour unit with easy access for better safety and work environment
5. Robust design avoids fatigue and wearing
Thickener Model
| Model | DN | Oval Discs Column Numbers | Capacity m³/h | Sludge (reference) kg-DS/h | Power | Weight |
| 1.0 mm | 1.0 mm | 3.8Ф380V | ||||
| SS-312 | 300 mm | 12 | 23 | 49 | 0.2 kW 1/160 | 110 kg |
| SS-412 | 400 mm | 12 | 30 | 67 | 0.2 kW 1/160 | 200 kg |
| SS-512 | 500 mm | 12 | 38 | 83 | 0.2 kW 1/160 | 210 kg |
| SS-612 | 600 mm | 12 | 45 | 100 | 0.4 kW 1/160 | 230 kg |
| SS-712 | 700 mm | 12 | 74 | 160 | 0.4 kW 1/160 | 380 kg |
| SS-812 | 800 mm | 12 | 86 | 185 | 0.75 kW 1/160 | 410 kg |
| SS-912 | 900 mm | 12 | 98 | 210 | 0.75 kW 1/160 | 440 kg |
| SS-1012 | 1000 mm | 12 | 107 | 230 | 0.75 kW 1/160 | 470 kg |
| SS-1212 | 1200 mm | 12 | 130 | 280 | 1.5 kW 1/160 | 600 kg |
Applications
· Food wastes treatment in school feeding center for scraps of food processing;
· Fishery wastes treatment;
· Crusher drainage waste disposer;
· Process before treatment wastewater;
· Drain water off devise from food etc;
· Primary filtration for wastes coming from grease traps;
· Enrichment screen before dehydration;
· Dehydrator;
Solutions for the Circular Economy
More and more wastewater treatment plants are discovering the benefits of a circular, holistic approach to wastewater treatment. Cost savings, reduced environmental impact and new income streams from recovered resources are but a few. Every wastewater treatment plant is unique and has its own set of challenges and opportunities. With our expertise in processing and our broad range of products, we can support your shift to a circular resource flow. Regardless of whether you are a contractor, designer or plant operator we can help you find the optimum solution for your specific project.
Packing and Delivery
1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Below is BENENV Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
FAQ
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan,Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
Sludge Dewatering Press,Sludge Dewatering Machine,Screw Press.
