|Product Name:||Simple Structure Fine Bubble Diffuser Good Self Cleaning Long Life Span||Capacity:||1000 M3/h|
|Size:||Φ215||Air Inlet:||Modled Injection|
|Materials:||ABS Or UPVC Or PP||Warranty:||2 Years|
|Service Life:||>5 Years||Application:||Wastewater Treatment|
membrane disc diffuser,
wastewater air diffuser

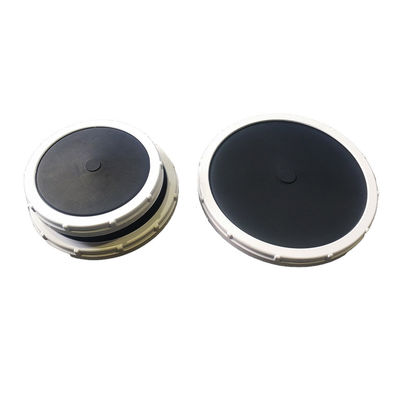

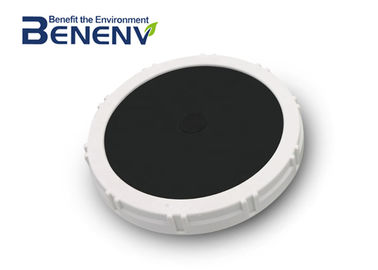

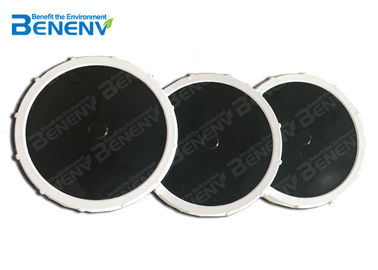

EPDM Fine Air Bubbles Disc Diffuser Wastewater Treatment
Disc bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble diffusers produce a plethora of very small air bubbles which rise slowly from the floor of a wastewater treatment plant or sewage treatment plant aeration tank and provide substantial and efficient mass transfer of oxygen to the water. The oxygen, combined with the food source, sewage, allows the bacteria to produce enzymes which help break down the waste so that it can settle in the secondary clarifiers or be filtered by membranes.
Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.
Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.
The PTFE surface layer protects the EPDM substrate from chemical attack,while at the same time significantly reducing surface fouling on the membrane.we except to learn that PTFE-coated EPDM membranes outlast standard EPDM,thereby reducing the life cycle costs even further .It is used by major cities worldwide due to the anticipated life cycle cost benefits and reduced maintenance.
1. In practical projects, when fine bubble diffuser working, we find that the region of the highest stress is mainly in the outer edges and central membrane. As a result, the stretching of membrane with traditional design is limited, the membrane is in a high stress state for some time, it is very fragile and easy tear, furthermore faces high aeration resistance.Under such condition, the oxygenation capacity decreases, the power consumption and maintenance cost increase.
2. Double check valve and periphery fold sealing structure can prevent diaphram dropping off from the PP plate.
3. Imported EPDM material from France
4. The diffuser has been used for 11 years, we took it from our clients's factory.
5. Unique porous technology makes the disc air diffuser bubble release evenly, with High Oxygen Transmission efficiency (OTE)
6. Good effect on saving in power, and low operating cost
7. The membrane has good self-cleaning and anti-clogging property
8. Easy to exclude failure, easy maintance and management
9. Simple structure for easy installation
10. In the long run, project cost is lower.
Packing and Delivery
Bubble pack and five- layer hard carton package for disc membrane disc fine bubble diffuser
|Standard hard carton package for air disc fine bubble diffuser|
110*37*28mm (50pc * Flat type/carton)
110*37*28mm (50pc * Arch type/carton)
102*44*33mm (38pcs *Arch type/carton)
102*55*37mm (68pcs *Flat type/carton)
102*54*35mm (38pcs *Arch type/carton)
102*54*35mm (68pcs *Flat type/carton)
|Delivery||15days after payment for air disc fine bubble diffuser|
