|Application:||Activated Sludge Dewatering, Especially For Oily Sludge||Capacity:||1-300 DS-kg/hr|
|Weight:||110 Kg||Power:||0.2 KW|
|Motor Brand:||SEW Or NISSEI Or Sumitomo||Electrical Components Brand:||Schneider, Omron, Siemens|
|Certificate:||ISO 9001, CE ,SGS||Product Name:||Automatic Sludge Dewatering Machine|
|Function:||Solid-liquid Separation Sludge Dewatering Machine||Reference Weight(kg):||260,450,350|
|Motor Type:||AC Motor||Dimension(l*w*h):||Customized|
|Installation:||Technical Guidance,Engineer's Guide|
gravity sludge thickener,
sludge belt filter press
Slurry Thickener Gravity Belt Thickening Rotary High Efficiency Filter Press For Sludge Qilee

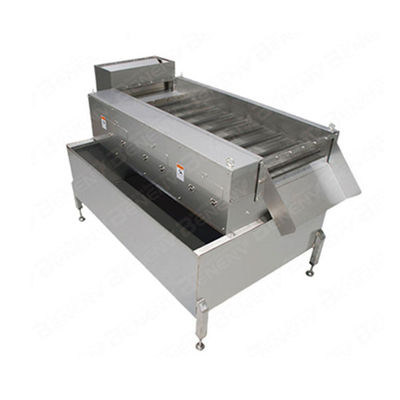

Sludge Thickening and Dewatering Machine, the clogging of filter mesh decreases the efficiency of conventional dewatering equipment. Such like belt press and filter press. BENENV's KDS Sludge thickner equipment with small footprint is equipped with unique dewatering technology, which enables dewatering while automatically self-cleaning the filter mesh. It is of larger throughput, self-cleaning function by slits opposite continuos rotation, no vibration and noises, and low power consumption. Besides, the strcuture is very simple, so the operation and maintenance is easy.
Non Clogging Sludge Dewatering Machine for Sludge Thickening , BENENV's KDS sludge dewatering press is of unique dewatering structure. It is of brand new dewatering structure, which enables automatically self-cleaning for the filter gap during thickening and dewatering. So this machine has stable and constant thickening without need of high pressure backwash water to prevent clog.This self-cleaning mechanism enables KDS dewatering press to be a good machine for oily and grease sludge.
Sludge Dewatering Machine Product Structure :
Solid-liquid separator srew press wasterwater treatment machine Working Principle :
|Model||DN||Oval Discs Column Numbers||Capacity m³/h||Sludge (reference) kg-DS/h||Power||Weight|
|1.0 mm||1.0 mm||3.8Ф380V|
|SS-312||300 mm||12||23||49||0.2 kW 1/160||110 kg|
|SS-412||400 mm||12||30||67||0.2 kW 1/160||200 kg|
|SS-512||500 mm||12||38||83||0.2 kW 1/160||210 kg|
|SS-612||600 mm||12||45||100||0.4 kW 1/160||230 kg|
|SS-712||700 mm||12||74||160||0.4 kW 1/160||380 kg|
|SS-812||800 mm||12||86||185||0.75 kW 1/160||410 kg|
|SS-912||900 mm||12||98||210||0.75 kW 1/160||440 kg|
|SS-1012||1000 mm||12||107||230||0.75 kW 1/160||470 kg|
|SS-1212||1200 mm||12||130||280||1.5 kW 1/160||600 kg|
dewatering machine screw press Packing and Delivery
1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
2.We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A . Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sluge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment Daf, Daf Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,Mbbr Price,Mbbr Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,
Q2. How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide Oem Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? This Is First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, Ce,Iso9001,Sgs Certificates. And We Have Com[Any In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: How Long Is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time and ?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Uniion, Moneygram
