Product Details:
|
| Product Name: | Multi Disk Screw Press Sludge Dewatering Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Warranty: | 2 Years | Service Life: | >15 Years |
| Certificate: | ISO 9000, CE Certificate | Operation: | Automatic |
| Material: | SS304 | After-sales Service Provided: | Online Support |

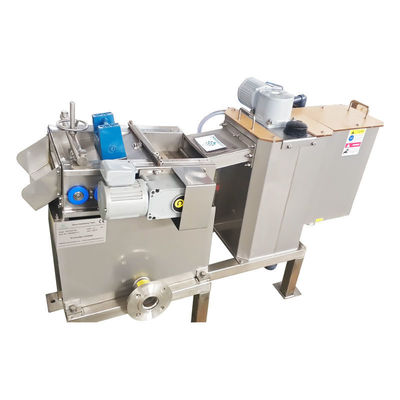

Wastewater Treament Plant Multi Disk Screw Press Sludge Dewatering Machine
|
Specifications of MDS sewage and sludge machine
|
|||
|
Main Parameters
|
Capacity
|
DS-kg/hr
|
1-600 DS-kg/hr
|
|
Size
|
mm
|
L4564*W2100*H2156
|
|
|
Power
|
kW
|
6.0
|
|
|
Motor
|
Gearbox
|
Brand
|
SEW,
SUMITOMO, NISSEI |
|
Protection
|
Certificates & IP
|
UL,CE, Water
proof(IP65) CCC
|
|
|

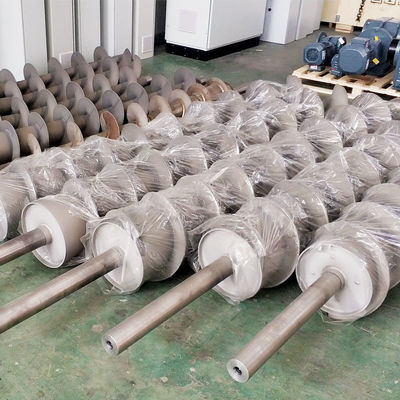

Screw Shaft
|
Treatment
|
SUS316L, Tungsten
carbide coating
|
|
|
Control Cabinet
|
Electrical Components
|
Brand
|
Schneider, Omron,
Siemens
|
|
Solenoid Valve
|
Brand
|
US,ASCO
|
|
|
Spray System
|
Brand
|
Japan Origin, H.IKEUCHI
|
|
|
Model
|
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)
|
Dissolved Air Flotation Sludge
|
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
|
||
|
Sludge Concentration (TS)
|
0.2%
|
1%
|
2%
|
5%
|
3%
|
|
MDS 051
|
~0.4 kg-DS/hr
(0.2 m³/hr) |
~0.6 kg-DS/hr
(0.06 m³/hr)
|
~2 kg-DS/hr
(0.1 m³/hr)
|
~4 kg-DS/hr
(0.08 m³/hr) |
~5 kg-DS/hr
(0.16 m³/hr) |
|
MDS 101
|
~2 kg-DS/hr
(1.0 m³/hr) |
~3 kg-DS/hr
(0.3 m³/hr) |
~5 kg-DS/hr
(0.25 m³/hr) |
~10 kg-DS/hr
(0.2 m³/hr) |
~13 kg-DS/hr
(0.43 m³/hr) |
|
MDS 131
|
~4 kg-DS/hr
(2.0 m³/hr) |
~6 kg-DS/hr
(0.6 m³/hr) |
~10 kg-DS/hr
(0.5 m³/hr) |
~20 kg-DS/hr
(0.4 m³/hr) |
~26 kg-DS/hr
(0.87 m³/hr) |
|
MDS 132
|
~8 kg-DS/hr
(4.0 m³/hr) |
~12 kg-DS/hr
(1.2 m³/hr) |
~20 kg-DS/hr
(1.0 m³/hr) |
~40 kg-DS/hr
(0.8 m³/hr) |
~52 kg-DS/hr
(1.73 m³/hr) |
|
MDS 202
|
~16 kg-DS/hr
(8.0 m³/hr) |
~24 kg-DS/hr
(2.4 m³/hr) |
~40 kg-DS/hr
(2.0 m³/hr) |
~80 kg-DS/hr
(1.6 m³/hr) |
~104 kg-DS/hr
(3.47 m³/hr) |
|
MDS 311
|
~20 kg-DS/hr
(10 m³/hr) |
~30 kg-DS/hr
(3.0 m³/hr) |
~50 kg-DS/hr
(2.5 m³/hr) |
~100 kg-DS/hr
(2.0 m³/hr) |
~130 kg-DS/hr
(4.33 m³/hr) |
|
MDS 312
|
~40 kg-DS/hr
(20 m³/hr) |
~60 kg-DS/hr
(6.0 m³/hr) |
~100 kg-DS/hr
(5.0 m³/hr) |
~200 kg-DS/hr
(4.0 m³/hr) |
~260 kg-DS/hr
(8.67 m³/hr) |
|
MDS 313
|
~60 kg-DS/hr
(30 m³/hr) |
~90 kg-DS/hr
(9.0 m³/hr) |
~150 kg-DS/hr
(7.5 m³/hr) |
~300 kg-DS/hr
(6.0 m³/hr) |
~390 kg-DS/hr
(13 m³/hr) |
|
MDS 412
|
~80 kg-DS/hr
(40 m³/hr) |
~120 kg-DS/hr
(12 m³/hr) |
~200 kg-DS/hr
(10 m³/hr) |
~400 kg-DS/hr
(8.0 m³/hr) |
~520 kg-DS/hr
(17.3 m³/hr) |
|
MDS 413
|
~120 kg-DS/hr
(60 m³/hr) |
~180 kg-DS/hr
(18 m³/hr) |
~300 kg-DS/hr
(15 m³/hr) |
~600 kg-DS/hr
(12 m³/hr) |
~780 kg-DS/hr
(26 m³/hr) |
