Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant

Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant
Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant

Large Image :  Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: OA9-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard package or customer reqiurment
Delivery Time: 2-6 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 Sets per year

Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant

Description
Product Name: Mechanical Bar Screen Wastewater Bar Screen For Sewage Treatment Plant Maximum Discharge: 120 L/s
Aperture Of Grid Aperture: 3 Mm Water Speed: 0.8 M/s
Width Of Grid: 310 Mm Depth Of The Channel: 800 Mm
Color: Sliver Ect Warranty: 1 Year
Materials: SUS304 Or SUS316 Delievery Time:: After Get The Deposit Within 15days
Installation Angle: 45° Power: 1.1 KW
Motor Band: SEW Or NISSEI
Highlight:

automatic bar screen

,

mechanical fine screen

Mechanical Bar Screen Wastewater Bar Screen For Sewage Treatment Plant



Introduction of Bar Screen

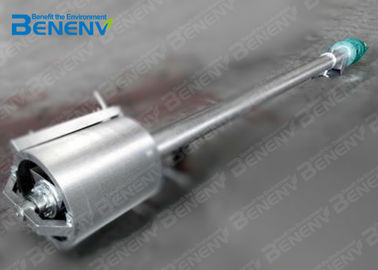

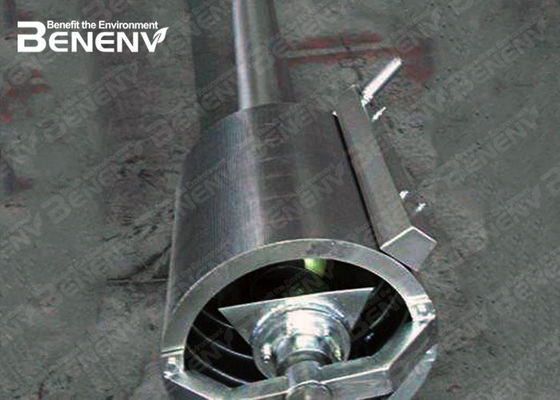

It is used for mechanical treatment of municipal sewage and industrial waste water, filtration of floating, precipitated and suspended substances in sewage. Due to the inclined installation of wedge-shaped screen drum, it prevents the separation of filter residue when the wedge-shaped screen drum flows in and out of the screen drum. At the same time, the screen is cleaned by the nozzle on the drum, and the filter residue is compressed and dehydrated while being fished out. At the same time, the filter residue is sent out of the water channel, and is also pressed and dehydrated. The fine grid is a cylinder type drum with rotation, which has the function of central screw transmission and function. The three in one function of filtering, transmission and pressing of the fine grid is driven by a gear motor.

The rotary drum screens are applied for separating solids from process and waste water. The rotating drum screens are robustly built and can be executed with a frequency controlled drum drive, a high pressure spray cleaning installation and/or can be made out of a more corrosion resistant construction material.


Model & Installation Dimensions of Bar Screen

Specifications of OA2-20 Rotary Drum Screen
Main Parameters
Maximum Discharge
L/s 120
Aperture of Grid Aperture mm 3
Width of grid mm 310
Depth of the channel mm 800
Height mm 3600
Water Speed m 3.6
Installation Dimension Outlet height mm 800
Screw Diameter mm 900
Installation Angle ° 45
Solid content after pressing % 35~40
Power Kw 1.1







Main Features of Bar Screen

(1) With neat structure & low space occupancy, easy to operate & maintenance.



(2) Bar spacing can be designed between 6 to 12mm.



(3) High residue capture capacity, fully enclosed transport, no pollution to the environment.



(4) Automatic running with low noise.



(5) Self-cleaning while running, without clogging.

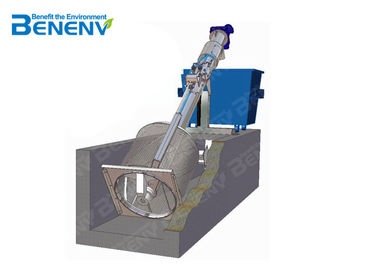

Installation Sizes of Bar Screen

Mechanical Bar Screen wastewater Bar Screen For Sewage Treatment Plant 0

1,rake 2,collecting hopper 3,screen body 4,deslagging plate 5,screw conveyor      6,conveyor & squeeze drum 7,backflow pipe 8,bracket 9,cleaning drum 10, cleaning drum
11,discharge outlet

FAQ
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System.

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan,Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.

Bar Screen;Mechanical Bar Screen Price;Mechanical Bar Screen
