Product Details:
|
Product Name: | Cutting Edge Screw Press Dewatering Machine Low Power Consumption | Type: | Sewage Treatment Plant |
---|---|---|---|
Brand Origin: | Japan | Raw Material: | SS304/SS316 |
Warranty: | 2 Years | Service Life: | >15 Years |
Electrical Components: | Schneider, Omron | Motor: | Sumitomo, Nissei |
Application: | Activated Sludge Dewatering, Especially For Oily Sludge | Certificate: | ISO 9000, CE Certificate |
Operation: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
High Light: | sludge dewatering equipment,dewatering screw press machine |

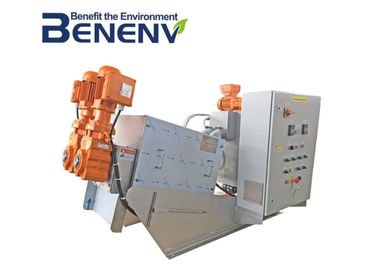

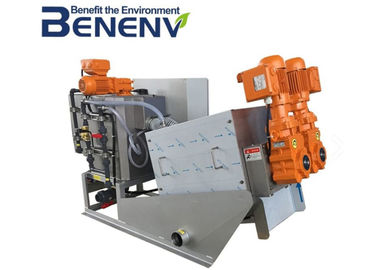

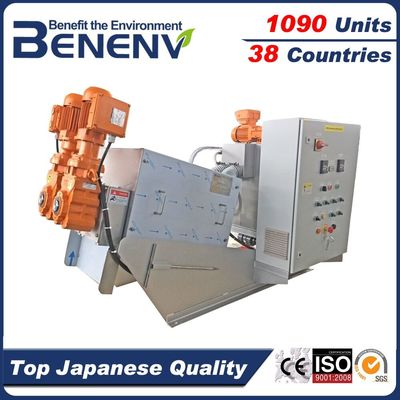

Cutting Edge Screw Press Dewatering Machine Low Power Consumption
Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
Specifications of MDS sewage and sludge machine
|
|||
Main Parameters
|
Capacity
|
DS-kg/hr
|
1-600 DS-kg/hr
|
Size
|
mm
|
L4564*W2100*H2156
|
|
Power
|
kW
|
6.0
|
|
Motor
|
Gearbox
|
Brand
|
SEW,
SUMITOMO, NISSEI |
Protection
|
Certificates & IP
|
UL,CE, Water
proof(IP65) CCC
|
|
Screw Shaft
|
Treatment
|
SUS316L, Tungsten
carbide coating
|
|
Control Cabinet
|
Electrical Components
|
Brand
|
Schneider, Omron,
Siemens
|
Solenoid Valve
|
Brand
|
US,ASCO
|
|
Spray System
|
Brand
|
Japan Origin, H.IKEUCHI
|
Model
|
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)
|
Dissolved Air Flotation Sludge
|
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
|
||
Sludge Concentration (TS)
|
0.2%
|
1%
|
2%
|
5%
|
3%
|
MDS 051
|
~0.4 kg-DS/hr
(0.2 m³/hr) |
~0.6 kg-DS/hr
(0.06 m³/hr)
|
~2 kg-DS/hr
(0.1 m³/hr)
|
~4 kg-DS/hr
(0.08 m³/hr) |
~5 kg-DS/hr
(0.16 m³/hr) |
MDS 101
|
~2 kg-DS/hr
(1.0 m³/hr) |
~3 kg-DS/hr
(0.3 m³/hr) |
~5 kg-DS/hr
(0.25 m³/hr) |
~10 kg-DS/hr
(0.2 m³/hr) |
~13 kg-DS/hr
(0.43 m³/hr) |
MDS 131
|
~4 kg-DS/hr
(2.0 m³/hr) |
~6 kg-DS/hr
(0.6 m³/hr) |
~10 kg-DS/hr
(0.5 m³/hr) |
~20 kg-DS/hr
(0.4 m³/hr) |
~26 kg-DS/hr
(0.87 m³/hr) |
MDS 132
|
~8 kg-DS/hr
(4.0 m³/hr) |
~12 kg-DS/hr
(1.2 m³/hr) |
~20 kg-DS/hr
(1.0 m³/hr) |
~40 kg-DS/hr
(0.8 m³/hr) |
~52 kg-DS/hr
(1.73 m³/hr) |
MDS 202
|
~16 kg-DS/hr
(8.0 m³/hr) |
~24 kg-DS/hr
(2.4 m³/hr) |
~40 kg-DS/hr
(2.0 m³/hr) |
~80 kg-DS/hr
(1.6 m³/hr) |
~104 kg-DS/hr
(3.47 m³/hr) |
MDS 311
|
~20 kg-DS/hr
(10 m³/hr) |
~30 kg-DS/hr
(3.0 m³/hr) |
~50 kg-DS/hr
(2.5 m³/hr) |
~100 kg-DS/hr
(2.0 m³/hr) |
~130 kg-DS/hr
(4.33 m³/hr) |
MDS 312
|
~40 kg-DS/hr
(20 m³/hr) |
~60 kg-DS/hr
(6.0 m³/hr) |
~100 kg-DS/hr
(5.0 m³/hr) |
~200 kg-DS/hr
(4.0 m³/hr) |
~260 kg-DS/hr
(8.67 m³/hr) |
MDS 313
|
~60 kg-DS/hr
(30 m³/hr) |
~90 kg-DS/hr
(9.0 m³/hr) |
~150 kg-DS/hr
(7.5 m³/hr) |
~300 kg-DS/hr
(6.0 m³/hr) |
~390 kg-DS/hr
(13 m³/hr) |
MDS 412
|
~80 kg-DS/hr
(40 m³/hr) |
~120 kg-DS/hr
(12 m³/hr) |
~200 kg-DS/hr
(10 m³/hr) |
~400 kg-DS/hr
(8.0 m³/hr) |
~520 kg-DS/hr
(17.3 m³/hr) |
MDS 413
|
~120 kg-DS/hr
(60 m³/hr) |
~180 kg-DS/hr
(18 m³/hr) |
~300 kg-DS/hr
(15 m³/hr) |
~600 kg-DS/hr
(12 m³/hr) |
~780 kg-DS/hr
(26 m³/hr) |

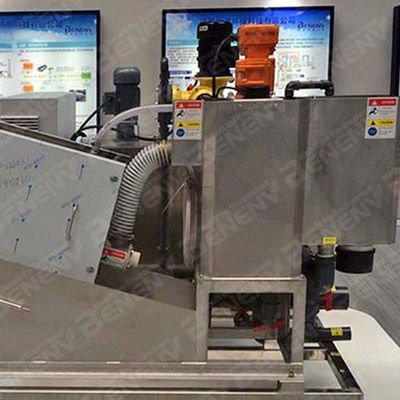

The initial section of dewatering drum is the Thickening Zone, where the solid-liquid separating process takes place and where the filtrate will also be discharged. The pitch of the screw and the gaps between the rings decrease at the end of dewatering drum, hence increasing its internal pressure. At the end, the End Plate further increases the pressure, so as to discharge dry sludge cake.
Jiangsu Benenv Environmental Protection Technology Co., Ltd. is an environmental protection company, specialized in mechanisms, environmental engineering and other related science. With research center in Japan, we have factory and office in China. Benenv specializes in the design, engineering, supply and installation of domestic and commercial water, waste water and sewage treatment systems, gas pollution control, and other environmental engineering products. Our company possesses complete sets of process design, equipment supply, constructions, and technology innovation. Overall, we are highly qualified in delivering turnkey and BOT projects for any industry. We have abundant experience in the treatment of industrial, domestic and commercial hazard wastewater. Benenv is staffed with local and overseas professionals with more than 15 years of acquired technical expertise and experience, offering various technologies and allied services. Our company works closely with the top 10 universities and scientific institutes to keep our cutting-edge technology and transform science and technology into productivity. Our company also works with the government, and is authorized as the liaison office of Yixing government to perform technology cooperation with foreign countries.
1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? This is First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service.
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
