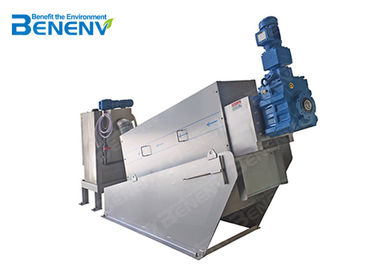

Wastewater Sewage And Sludge Machine Filter Screw Typebiological Wastewater Treatment

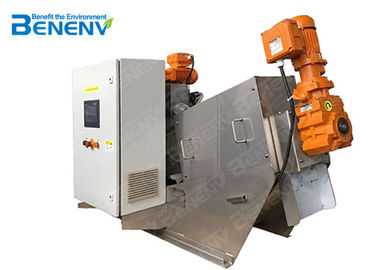

Wastewater Sewage And Sludge Machine Filter Screw Typebiological Wastewater Treatment
Wastewater Sewage And Sludge Machine Filter Screw Typebiological Wastewater Treatment Wastewater Sewage And Sludge Machine Filter Screw Typebiological Wastewater Treatment

Large Image :  Wastewater Sewage And Sludge Machine Filter Screw Typebiological Wastewater Treatment

Product Details:
Place of Origin: China
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: MDS202
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood
Delivery Time: 3-7 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99 Sets per 6 weeks

Wastewater Sewage And Sludge Machine Filter Screw Typebiological Wastewater Treatment

Description
Brand Origin: Japan Raw Material: SS304
Operation: 2 Years Warranty: >15 Years
Application: Activated Sludge Dewatering, Especially For Oily Sludge After-sales Service Provided: Engineers Available To Service Machinery Overseas
Power: Depend On The Treating Volume Certification: CE, ISO14001, ISO 9000, SGS
Function: Solid-liquid Separation, Waste Water Treatment Machine
High Light:

wastewater treatment equipment

,

sludge press machine

,

Filter Screw Typebiological Wastewater Treatment

Electrocoagulation Wastewater Treatment Machine Filter Screw Press Sludge Dewatering Machine







Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.



Specifications of MDS sewage and sludge machine
Main Parameters
Capacity
DS-kg/hr
1-600 DS-kg/hr
Size
mm
L4564*W2100*H2156
Power
kW
6.0
Motor
Gearbox
Brand
SEW,
SUMITOMO, NISSEI
Protection
Certificates & IP
UL,CE, Water
proof(IP65) CCC
Screw Shaft
Treatment
SUS316L, Tungsten
carbide coating
Control Cabinet
Electrical Components
Brand
Schneider, Omron,
Siemens
Solenoid Valve
Brand
US,ASCO
Spray System
Brand
Japan Origin, H.IKEUCHI



Product Display



Model Selection

Model
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)

Dissolved Air Flotation Sludge
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
Sludge Concentration (TS)

0.2%

1%

2%

5%

3%
MDS 051
~0.4 kg-DS/hr
(0.2 m³/hr)
~0.6 kg-DS/hr
(0.06 m³/hr)
~2 kg-DS/hr
(0.1 m³/hr)
~4 kg-DS/hr
(0.08 m³/hr)
~5 kg-DS/hr
(0.16 m³/hr)
MDS 101
~2 kg-DS/hr
(1.0 m³/hr)
~3 kg-DS/hr
(0.3 m³/hr)
~5 kg-DS/hr
(0.25 m³/hr)
~10 kg-DS/hr
(0.2 m³/hr)
~13 kg-DS/hr
(0.43 m³/hr)
MDS 131
~4 kg-DS/hr
(2.0 m³/hr)
~6 kg-DS/hr
(0.6 m³/hr)
~10 kg-DS/hr
(0.5 m³/hr)
~20 kg-DS/hr
(0.4 m³/hr)
~26 kg-DS/hr
(0.87 m³/hr)
MDS 132
~8 kg-DS/hr
(4.0 m³/hr)
~12 kg-DS/hr
(1.2 m³/hr)
~20 kg-DS/hr
(1.0 m³/hr)
~40 kg-DS/hr
(0.8 m³/hr)
~52 kg-DS/hr
(1.73 m³/hr)
MDS 202
~16 kg-DS/hr
(8.0 m³/hr)
~24 kg-DS/hr
(2.4 m³/hr)
~40 kg-DS/hr
(2.0 m³/hr)
~80 kg-DS/hr
(1.6 m³/hr)
~104 kg-DS/hr
(3.47 m³/hr)
MDS 311
~20 kg-DS/hr
(10 m³/hr)
~30 kg-DS/hr
(3.0 m³/hr)
~50 kg-DS/hr
(2.5 m³/hr)
~100 kg-DS/hr
(2.0 m³/hr)
~130 kg-DS/hr
(4.33 m³/hr)
MDS 312
~40 kg-DS/hr
(20 m³/hr)
~60 kg-DS/hr
(6.0 m³/hr)
~100 kg-DS/hr
(5.0 m³/hr)
~200 kg-DS/hr
(4.0 m³/hr)
~260 kg-DS/hr
(8.67 m³/hr)
MDS 313
~60 kg-DS/hr
(30 m³/hr)
~90 kg-DS/hr
(9.0 m³/hr)
~150 kg-DS/hr
(7.5 m³/hr)
~300 kg-DS/hr
(6.0 m³/hr)
~390 kg-DS/hr
(13 m³/hr)
MDS 412
~80 kg-DS/hr
(40 m³/hr)
~120 kg-DS/hr
(12 m³/hr)
~200 kg-DS/hr
(10 m³/hr)
~400 kg-DS/hr
(8.0 m³/hr)
~520 kg-DS/hr
(17.3 m³/hr)
MDS 413
~120 kg-DS/hr
(60 m³/hr)
~180 kg-DS/hr
(18 m³/hr)
~300 kg-DS/hr
(15 m³/hr)
~600 kg-DS/hr
(12 m³/hr)
~780 kg-DS/hr
(26 m³/hr)



Dewater Principle

    After gravity concentration in the concentrating section, the sludge is transported to the dewatering section. During the process of advancement, as the filter gap and pitch gradually decrease, and the blocking effect of the back pressure plate, internal pressure is generated, and the volume is continuously reduced to reach sufficient Purpose of dehydration.

1.The main body of the dewatering machine is a filtering device formed by the fixed ring and the swimming ring being laminated on each other, and the spiral shaft penetrating therethrough. The front section is the concentration section, and the rear section is the dewatering section.

2. The filter gap formed between the fixed ring and the swimming ring and the pitch of the screw shaft gradually become smaller from the concentrated part to the dewatered part.

3. While the rotation of the screw shaft pushes the sludge from the thickening section to the dewatering section, it also continuously drives the swimming ring to clean the filter gap to prevent clogging.

4. After the gravity concentration in the concentration part, the sludge is transported to the dewatering part. During the process of advancement, as the filter slit and pitch gradually become smaller, and the blocking effect of the back pressure plate generates a great internal pressure and volume Constantly shrink to achieve the purpose of full dehydration.




Cooperation Case

Application in Various Industry



The screw type sludge dewatering machine is suitable for municipal wastewater treatment, petroleum, chemical, tobacco, leather, paper, textile, printing and dyeing, chemical fiber, food, brewing, slaughtering, breeding and other industries. It has the characteristics of low energy consumption, low noise, small floor space, unattended operation, continuous work, etc.

Recently, the belt fiter press is widely used in the sludge dehydrating, however, some problems are being with this machine, such as the large quantities of water consumption, operation requirement is high etc. But the screw type sludge dehydrator is a new type sludge dehydrator. With its advantages, such as energy saving, operaton stable, highly automation it is quickly recognized and accepted by the market.



Exclusive pre-concentration design, applicable for sludge of concentration from 2000mg/L to 50000mg/L. Besides, Due to the innovation of the structure design, it is highly suitable to oil sludge



Company Information



Jiangsu Benenv Environmental Protection Technology Co., Ltd. is an environmental protection company, specialized in mechanisms, environmental engineering and other related science. With research center in Japan, we have factory and office in China. Benenv specializes in the design, engineering, supply and installation of domestic and commercial water, waste water and sewage treatment systems, gas pollution control, and other environmental engineering products. Our company possesses complete sets of process design, equipment supply, constructions, and technology innovation. Overall, we are highly qualified in delivering turnkey and BOT projects for any industry. We have abundant experience in the treatment of industrial, domestic and commercial hazard wastewater. Benenv is staffed with local and overseas professionals with more than 15 years of acquired technical expertise and experience, offering various technologies and allied services. Our company works closely with the top 10 universities and scientific institutes to keep our cutting-edge technology and transform science and technology into productivity. Our company also works with the government, and is authorized as the liaison office of Yixing government to perform technology cooperation with foreign countries.

Packaging and Delivery



1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2.We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
