Nitrification Denitrification MBBR Biofilm Carriers 10 - 20 G/M2 Biomass

Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass
Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass

Large Image :  Nitrification Denitrification MBBR Biofilm Carriers 10 - 20 G/M2 Biomass

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: BNPE Φ25×10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiatable
Packaging Details: Standard packing of K1 K3 media Kalenes media bio filter media MBBR for Fish Farm
Delivery Time: 2-4 weeks
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Cubic Meter/Cubic Meters per Month K1 K3 media Kalenes media bio filter media MBBR for Fish Farm

Nitrification Denitrification MBBR Biofilm Carriers 10 - 20 G/M2 Biomass

Description
Product Name: MBBR Media, K1 Kaldnes Filter Media Size: Φ215
Sample: Available Materials: ABS Or UPVC Or PP
Warranty: 1 Year Service Life: >5 Years
Shape: Cylindrical Package: Carton Packing
Materialal: HDPE Color: White
Application: Wasterwater Treatment Other Name: Mbbr Biofilm Media,MBBR Media,bio Filter Media, Membrane
Other Name: Bio Filter Media Port: Shanghai
High Light:

moving bed bioreactor

,

mbbr biofilm carriers

Moving Bed Biofilm Reactor Mbbr For Nitrification Denitrification Mbbr Carrier



Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass 0

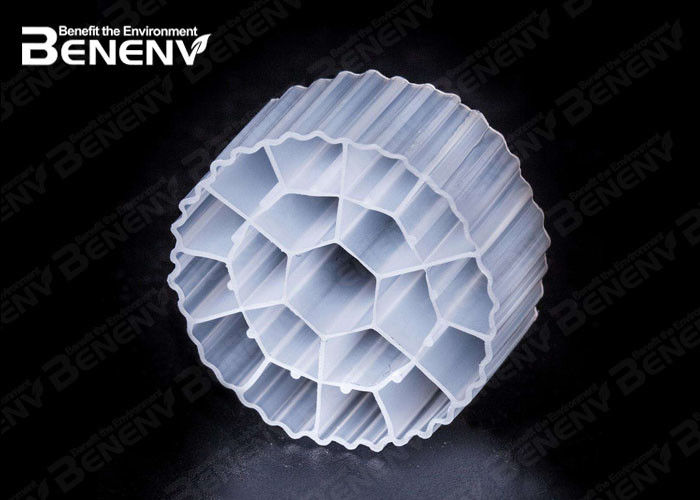

MBBR Media Product Introduction:




MBBR media is a new kind of suspension carriers. It modified polymeric material with the promoted additions of bio-enzyme, it improves the enzymatic catalysis, so it possess excellences of larger specific surface, being easy to multiply biofilm, unease to fall off, high denitrification, good hydrophile, high biological activity.

MBBR is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.

The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR biofilm carrier can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR biofilm carrier is new-developed media, has better treatment effect compared with traditional media.

Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass 1



Mbbr biofilm media Product Features:




1) Bioflim forming time is 3~15 days, the fastest is only 2 days. Do not culture of bacteria in advance. The formula scientific substance support the growth of heterotrophic and autotrophic microorganism within its cells
2) Special Surface Treatment
- Larger and Roughness Inner Surface to Enhance Microble cell Adhension and Biofilm Forming Rapidly
3) Good Hydrophilicity
- Add Hydrophilic Groups to Improves Biofilm Formation and Biomass
4) The surface of our MBBR media is with positive Charge which promote Microorganism Growth , the study report most of microorganisms take negative charge.
5) Biomass (g/m2) 10 - 20
6) High efficience removal of BOD5,COD, TSS etc

Spec.
(mm)
Φ12*9 Φ11*7 Φ10*7 Φ16*10 Φ25*10 Φ25*10 Φ5*10 Φ15*15
Hole Numbers
(pcs)
4 4 5 6 19 19 8 40
Efficient Surface
(m2/m3)
>800 >900 >1000 >800 >800 >800 >3500 >900
Density
(g/cm3)
0.96-0.98 0.96-0.98 0.96-0.98 0.96-0.98 0.96-0.98 1.02-1.05 1.02-1.05 0.96-0.98
Packing Numbers
(pcs/m3)
>630000 >830000 >850000 >360000 >97000 >97000 >2000000 >230000
Dosing Ratio
(%)
15-67 15-68 15-70 15-67 15-65 15-65 15-70 15-65
Membrane-forming Time
(days)
3-15 3-15 3-15 3-15 3-15 3-15 3-15 3-15
Life-span
(year)
>15 >15 >15 >15 >15 >15 >15 >15
​​

MBBR biofilm carrier Parameters




echnical specification of MBBR biofilm carrier:



Mbbr filter media Application:




MBBR biofilm carrier can be used in both aerobic process and anaerobic process.



1) The sewage plant upgrade project , improve the standard and quantity
2) New sewage treatment project of MBBR and biological aerated filter process
3) Biochemical treatment of reclaimed water
4) River regulation denitrification and phosphorus removal
5) Aquaculture in addition to ammonia nitrogen, water purification
6) Biological filter media is used for biological deodorization tower





Mbbr biofilm media​ Process Principal:




The waste water go through the suspending media of MBBR reactor, form the biological membrane on the surface of the media gradually, with the action of the microbial on the biological membrane, the waste water is purified. The media can move freely in the reactor with the mixing of the water; For the aerobic reactor, the aeration will make the media move; For the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media for the MBBR process, has better treatment effect compare to traditional media.



Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass 2

Nitrification Denitrification MBBR  Biofilm Carriers 10 - 20 G/M2 Biomass 3







Mbbr biofilm media Packing and Delivery:




Samples :Lead time: 3-5 working days.
Charge:The buyer pays the sample cost and freight.
Mass order Production :
Lead time: 10-15 working days after receipt of deposit.
Shipment Method :
By Aircargo: Different Airline for your optional with good price .
By Sea : Different shipping company for your optional with good price .
By Express : DHL ,TNT, FedEx,UPS,EMS etc.
You can choose your own shipping company.
