9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser

China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

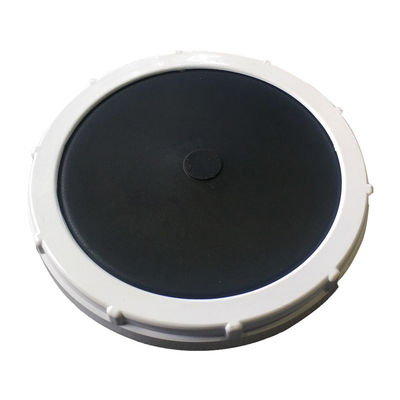

9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser

9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser
9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser 9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser 9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser 9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser

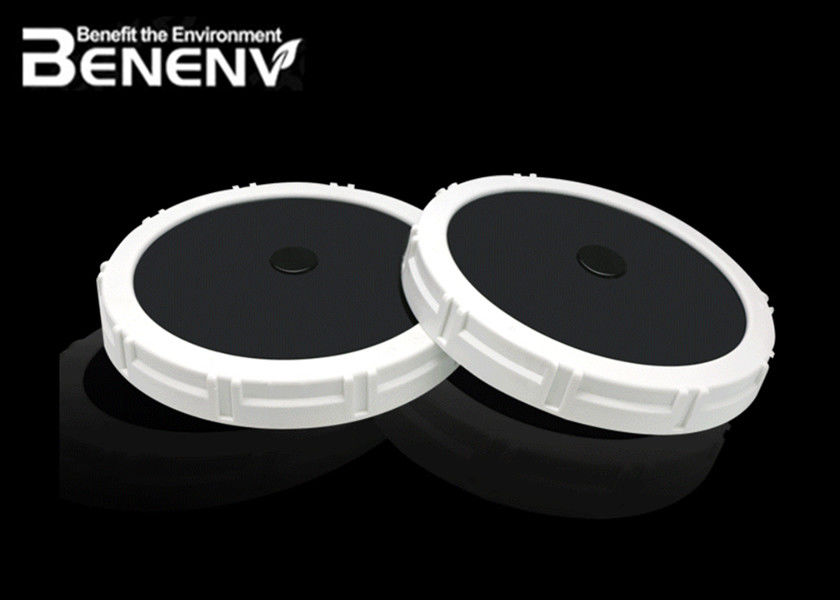

Large Image :  9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: Φ215
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiatable
Packaging Details: Export Plywood Case
Delivery Time: 2-4 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1,000,000 pieces per Years

9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser

Product Name: 9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser Capacity: 1000 M3/h
Size: Φ215 Air Inlet: Modled Injection
Materials: ABS Or UPVC Or PP Warranty: 2 Years
Service Life: >5 Years Application: Wastewater Treatment
High Light:

air fine bubble diffuser


membrane disc diffuser

9 inch Fine Bubble Disc Diffuser With EPDM Membrane For Water Treatment


Brief Introduction


Each strong EPDM (rubber) membrane is composed of up to 1000 tiny holes that release thousands of micro bubbles when compressed air inflates the disc. Energy saving design requires only 0.5 CFM of air supply for proper operation. For steep slope and deep water applications consider an aeration disc diffuser system as it provides fine bubbles from one location.
The self-cleaning flexible membrane openings prevent clogging in the dirtiest of lakes. Immersion in the muddiest of pond bottoms even where the water is dirty or brackish will not hamper the performance of the disc. Salt water or hard water or sludge thickened basins are not a problem for these powerful diffusers.
Most aerating bubbles produced with the powerful micro bubble technology are only .5 to 1.0 millimeters in diameter. The fundamental decrease in bubble size dramatically increases oxygen transfer rates. This will provide your pond with the most in aeration efficiency. The male connection is ¾” threads.
These rugged assemblies are ideal for updating and retrofitting worn-out, clogged or broken airstone type diffusers. No more airstone acid cleaning or frequent replacement necessary.
Flexible 7” or 9″ diameter membrane disc creates a strong, reliable bubble column for efficient lifting volume and aerating action.



Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.



Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.



The PTFE surface layer protects the EPDM substrate from chemical attack,while at the same time significantly reducing surface fouling on the membrane.we except to learn that PTFE-coated EPDM membranes outlast standard EPDM,thereby reducing the life cycle costs even further .It is used by major cities worldwide due to the anticipated life cycle cost benefits and reduced maintenance.

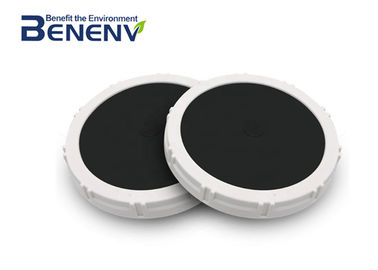

9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser 0


Product Features


1.Each aeration system using customized.
2.The continue upgrading of product quality.
3.Professional project management team to ensure each project is completed on time to the best quality.
4.Perfect customer service support system.
5.The aeration film substrate having modified polyurethane,s silicone rubber EPDM inthree kinds of rubber materials and all kinds of different specifications of the diaphragm, using an extrusion technology to product ,for any a aeration brand replaced with diaphragm.
6.A rubble diaphragm adopts the mechanical hole.
7.The vertical film texture " workers" -shaped hole


EPDM membrane disc diffuser Model φ215mm φ260mm φ300mm
Working air flow (m3/h) 1.5-3 2-5 2-8
Designed air flow(m3/h) 2 3 4
Service area(m2/piece) 0.25-0.45 0.35-0.65 0.45-0.75
Oxygen utilization ratio(%) >30 >30 >30
Oxygenate capability(kgO2/h) 0.13-0.35 0.18-0.45 0.25-0.5
Water submerged depth(m) 4-8 4-8 4-8
Theoretic dynamic efficeny(kgO2/kw.h) 6.5 6.5 6.5
Drag loss(pa) <3000 <3000 <3000

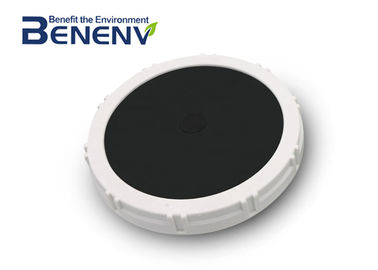

9 Inch Bubble Disc Diffuser 1000 M3/H Capacity Disc Type Air Diffuser 1


Product Application


1. Aeration of fishpond and other applications
2. Aeration of deep aeration basin
3. Aeration for excreta and animal waste water treatment plant
4. Aeration for denitrification/dephosphorization aerobic processes
5. Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6. Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant

Packing and Delivery


Bubble pack and five- layer hard carton package for disc membrane disc fine bubble diffuser


Standard hard carton package for air disc fine bubble diffuser
φ215mm(8 inch)

110*37*28mm (50pc * Flat type/carton)

110*37*28mm (50pc * Arch type/carton)

φ260mm(9 inch)

102*44*33mm (38pcs *Arch type/carton)

102*55*37mm (68pcs *Flat type/carton)

φ300mm(12 inch)

102*54*35mm (38pcs *Arch type/carton)

102*54*35mm (68pcs *Flat type/carton)

Delivery 15days after payment for air disc fine bubble diffuser
