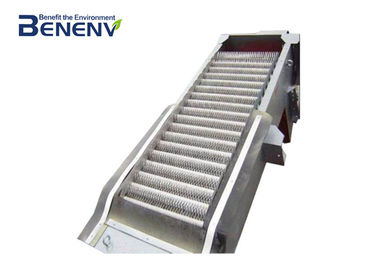

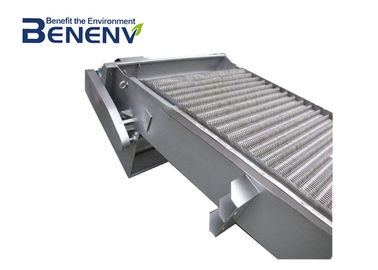

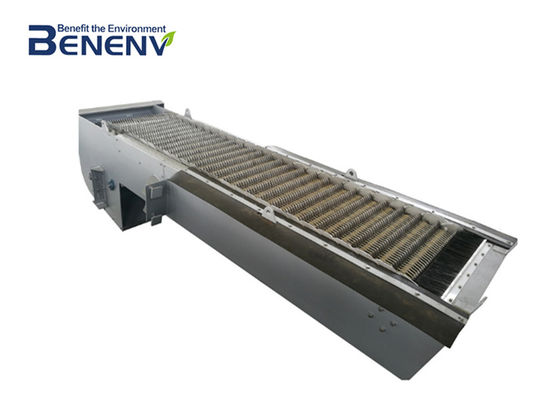

High Strength Mechanical Bar Screen Self Cleaning Long Working Life

China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

High Strength Mechanical Bar Screen Self Cleaning Long Working Life

High Strength Mechanical Bar Screen Self Cleaning Long Working Life
High Strength Mechanical Bar Screen Self Cleaning Long Working Life High Strength Mechanical Bar Screen Self Cleaning Long Working Life High Strength Mechanical Bar Screen Self Cleaning Long Working Life High Strength Mechanical Bar Screen Self Cleaning Long Working Life

Large Image :  High Strength Mechanical Bar Screen Self Cleaning Long Working Life

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: HZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export standard package or customer reqiurment
Delivery Time: 2-6 weeks
Payment Terms: T/T
Supply Ability: 500 Sets per year

High Strength Mechanical Bar Screen Self Cleaning Long Working Life

Water Depth H3: 1.0 M Warranty: 1 Year
Materials: SUS304 Or SUS316 Power: 0.55-3.0 KW
Motor Band: SEW Or NISSEI Delievery Time: After Get The Deposit Within 15days
Function: Waste-liquid Seperation Keywords: Automatic Bar Screen
Rake Material: Stainless Steel Or Nylon
High Light:

high strength mechanical bar screen


mechanical bar screen high strength


high strength mechanical screen wastewater

Stainless Steel Perfect Automatic Mechanical Bar Screen For Wastewater Treatment


Structure& Working Principle

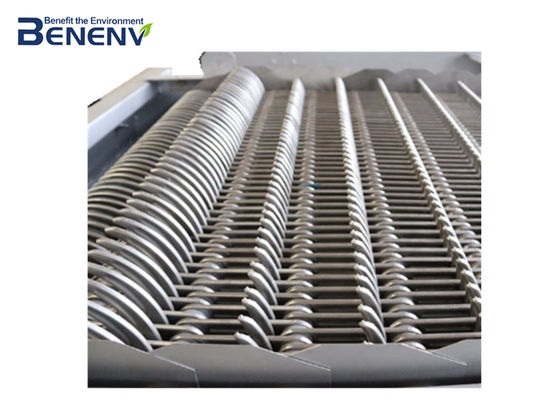

Fine bar screen is equipped to the chain shaft according to certain rankings,which will form an enclosed circulating toothed harrow surface.The whole toothed harrow surface does the circulating exercise from top to bottom driven by the driven chain.The solid suspended matter intercepted on the toothed harrow will be picked up to the platform,and cleaned by turning the brush.Then the goal of protecting the water pump and reducing subsequent work load will be reached.



HZ1 Rotary Rake Screen (Also called as rotary solid-liquid separator), is an advanced solid-liquid separation device which has been widely used in municipal wastewater treatment plant,pre-treatment device for domestic effluents, municipal rainwater & sewage pump station,water intake of water supply plant & cooling water of power plant. It can also be used for industrial waste water treatment, such as textile, printing and dyeing, food, fisheries, paper making, brewing, slaughtering and tanning industry. It is regarded as the ideal solid-liquid separation equipment in water

treatment field.



High Strength Mechanical Bar Screen Self Cleaning Long Working Life 0

Product Details

Material SS304/316
Certification CE/ISO 9001
Grid gap 1mm-15mm
Operation automatic
Width&Depth Customize
Power 0.55-3.0 kw
Electrical component Schneider/Omron/Siemens
Warranty 1 year
After-sale service engineers available
Product Keywords rakes screens,bar screentical bar screens


Water Flow Sheet


Parameter of Bar Screen
Model Bar Width(mm) Equipment Width(mm) Channel Width(mm) Space between bars(mm) Speed(m/min) Installation Angle Moto power(kw)
JXGS-300 300 430 500 3-20 2.2 60-80 0.75
JXGS-500 500 630 700 3-20 2.2 60-80 0.75
JXGS-800 800 930 900 3-20 2.2 60-80 1.1
JXGS-1000 1000 1130 1200 3-20 2.2 60-80 1.1
JXGS-1200 1200 1330 1400 3-20 2.2 60-80 1.5
JXGS-1500 1500 1630 1700 3-20 2.2 60-80 1.5
JXGS-1800 1800 2090 2210 3-20 2.2 60-80 2.2
JXGS-2200 2200 2490 2610 3-20 2.2 60-80 3


Introduction and Applications

Mechanical bar screen machine (grilling spotter) is a kind of solid-liquid separation device, which can continuous automatic eliminate all kinds of figure sundries in the fluid, which can as a special equipment widely used in urban sewage treatment,water supply industry, electric plant water inlet, at the same time, it can be as a essential special equipment in the production processing of textile, food processing, paper making, leather etc industry, it is the most advanced Solid-liquid separation equipment in china. Rotary grilling machine also called bar screen spotter.
The maxi advantage of the equipment is high Automaticity ,high separative effiency, small power consumption,no noise,Good corrosion resistance,can ensure continuous steady operation without unserviced, set overload safeguard device,when the equipment out of order, can give a sounding and light alarm and stop operating automatically ,can avoid equipment working overload.
This equipment can adjust operation interval at will according to user’s request,achieve operation periodic; can automatic control according to the before and after grilling liquid level difference ;with the function of manual control,in order to overhauling convenient.user can chose at will according to different work demand,
As the equipment structure design rational, with stronger self-cleaning ability, won’t appear blocking, few daily maintenance work.
according to width, the equipment width exceed 1500mm, cab be made into parallel machine, the clearance of a grille can divide into 1mm,3mm,5mm,10mm,20mm,30mm,40mm,50mm etc all kinds of norms, which can be chosen according to water quantity, lift height, the gross of solid-liquid separation and the shape of the separation material and particle size , the material quality of rake tooth can be ABS engineering plastic,nylon,stainless according to user's request. Main body frame have stainless material and Carbon steel antiseptic.
Main Features of mechanical bar screen for sludge treatment
The driving unit is directly driven by cycloidal gear reducer or helical gear reducer which shows the nature of working stability, low noise, big load capability and high efficiency in conveying.
Simple structure with compact size, easy to install and move. Device can self-clean up while working, easy to maintain.
Easy to operate, can be controlled directly on the spot or remote.
Include overload protection device, machine will shut down automatically when malfunction happens to avoid damage.
When the device width exceeds 1500mm, will be made into parallel machine to ensure the overall strength.

Installation Sizes

High Strength Mechanical Bar Screen Self Cleaning Long Working Life 1

Packaging and Delivery


1.Before packing, all our screens must be covered by plastic film, to protect machine from any damage like water.


2.After checking and wrapping, the screen will be placed into a good fumigation chamber with shipping mark


High Strength Mechanical Bar Screen Self Cleaning Long Working Life 2


Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
