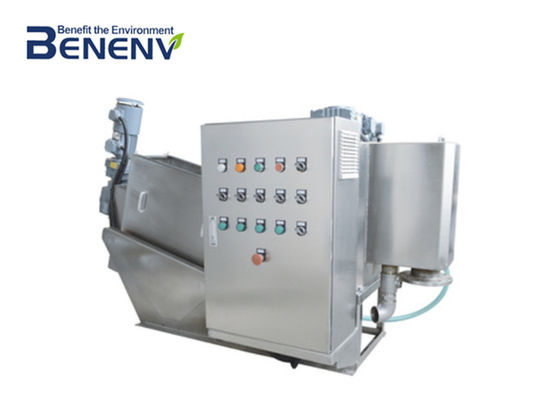

Large Image :  Low Noise Sludge Dewatering Equipment Stable Performance Easy To Operate

Product Details:
Place of Origin: China
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: MDS202
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood
Delivery Time: 3-7 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99 Sets per 6 weeks

Low Noise Sludge Dewatering Equipment Stable Performance Easy To Operate

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Brand Origin: Japan
Raw Material: SS304 Warranty: 2 Years
Service Life: >15 Years Electrical Components: Schneider, Omron
Motor: Sumitomo, Nissei Application: Activated Sludge Dewatering, Especially For Oily Sludge
Certificate: ISO 9000, CE Certificate Operation: Automatic

Compact Poultry Manure Dewatering Machine For Wastewater Treatment


Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.

Specifications of MDS sewage and sludge machine
Main Parameters
Capacity
DS-kg/hr
1-600 DS-kg/hr
Size
mm
L4564*W2100*H2156
Power
kW
6.0
Motor
Gearbox
Brand
SEW, BAUER,
SUMITOMO, NISSEI
Protection
Certificates & IP
UL,CE, Water
proof(IP65) CCC
Screw Shaft
Treatment
SUS316L, Tungsten
carbide coating
Control Cabinet
Electrical Components
Brand
Schneider, Omron,
Siemens
Solenoid Valve
Brand
US,ASCO
Spray System
Brand
Japan Origin, H.IKEUCHI



Product Display

Low Noise  Sludge Dewatering Equipment Stable Performance Easy To Operate 1

Working Principle

The main body of volute press sludge dewatering machine is made of multiple fixed annular plates and moveable annular plates with the screw shaft running through it. The front part is thickening section and the ending part is dewatering section. It can thicken and dewater sludge in one box. The volute press sludge dehydrator has taken place of the traditional filter clothes and centrifugal filtration method for its distinctive filter model.

Sludge will be transported to the dewatering part after being thckened in the thickening part. In the advancing progress, great pressure has been produced because of the gradually decreasing filter spacing and screw distance with the clogging of the back platen. Then the volume decreases continuously, and the purpose of fully dewatering will be achieved.

Low Noise  Sludge Dewatering Equipment Stable Performance Easy To Operate 2
Product Features

1- The principal part adopts stainless steel as its material and possesses high strength for it is rust-less.2- The filter cloth imported from Germany, which provides the best performance and long service life.
3- Automatic cylinder deviation correction system effectively prevents filter cloth deviation. The safety alarm device and limit deviation controlling improve filter cloth life and reduce maintenance costs.
4- Great product capability, good washing effect, flexible operation, low containing moisture in cake.
5- Low energy consumption, high efficiency, low revolutions, low noise.
6- Safety system monitors the entire working environment, and automatic stopping devices satisfies the need of operation security.


Model Selection

Model
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)

Dissolved Air Flotation Sludge
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
Sludge Concentration (TS)

0.2%

1%

2%

5%

3%
MDS 051
~0.4 kg-DS/hr
(0.2 m³/hr)
~0.6 kg-DS/hr
(0.06 m³/hr)
~2 kg-DS/hr
(0.1 m³/hr)
~4 kg-DS/hr
(0.08 m³/hr)
~5 kg-DS/hr
(0.16 m³/hr)
MDS 101
~2 kg-DS/hr
(1.0 m³/hr)
~3 kg-DS/hr
(0.3 m³/hr)
~5 kg-DS/hr
(0.25 m³/hr)
~10 kg-DS/hr
(0.2 m³/hr)
~13 kg-DS/hr
(0.43 m³/hr)
MDS 131
~4 kg-DS/hr
(2.0 m³/hr)
~6 kg-DS/hr
(0.6 m³/hr)
~10 kg-DS/hr
(0.5 m³/hr)
~20 kg-DS/hr
(0.4 m³/hr)
~26 kg-DS/hr
(0.87 m³/hr)
MDS 132
~8 kg-DS/hr
(4.0 m³/hr)
~12 kg-DS/hr
(1.2 m³/hr)
~20 kg-DS/hr
(1.0 m³/hr)
~40 kg-DS/hr
(0.8 m³/hr)
~52 kg-DS/hr
(1.73 m³/hr)
MDS 202
~16 kg-DS/hr
(8.0 m³/hr)
~24 kg-DS/hr
(2.4 m³/hr)
~40 kg-DS/hr
(2.0 m³/hr)
~80 kg-DS/hr
(1.6 m³/hr)
~104 kg-DS/hr
(3.47 m³/hr)
MDS 311
~20 kg-DS/hr
(10 m³/hr)
~30 kg-DS/hr
(3.0 m³/hr)
~50 kg-DS/hr
(2.5 m³/hr)
~100 kg-DS/hr
(2.0 m³/hr)
~130 kg-DS/hr
(4.33 m³/hr)
MDS 312
~40 kg-DS/hr
(20 m³/hr)
~60 kg-DS/hr
(6.0 m³/hr)
~100 kg-DS/hr
(5.0 m³/hr)
~200 kg-DS/hr
(4.0 m³/hr)
~260 kg-DS/hr
(8.67 m³/hr)
MDS 313
~60 kg-DS/hr
(30 m³/hr)
~90 kg-DS/hr
(9.0 m³/hr)
~150 kg-DS/hr
(7.5 m³/hr)
~300 kg-DS/hr
(6.0 m³/hr)
~390 kg-DS/hr
(13 m³/hr)
MDS 412
~80 kg-DS/hr
(40 m³/hr)
~120 kg-DS/hr
(12 m³/hr)
~200 kg-DS/hr
(10 m³/hr)
~400 kg-DS/hr
(8.0 m³/hr)
~520 kg-DS/hr
(17.3 m³/hr)
MDS 413
~120 kg-DS/hr
(60 m³/hr)
~180 kg-DS/hr
(18 m³/hr)
~300 kg-DS/hr
(15 m³/hr)
~600 kg-DS/hr
(12 m³/hr)
~780 kg-DS/hr
(26 m³/hr)

Application in Various Industry



Construction and upgrade of city water works
Self-equipped water works for industrial and mining enterprises
Surface water & underground water purification system
Drinking water treatment for resort & construction site
RO & NF raw water pretreatment
Water purification for swimming pool & greenhouse plant growing
MBR membrane treatment & treatment of domestic sewage
Solid-liquid separation and recycling of industrial wastewater
Waste penetrant pretreatment
Treatment and reuse of textile printing and dyeing wastewater
Treatment and reuse of papermaking and fertilizer wastewater
Treatment and reuse of semiconductor and finish machining waste water
Treatment and reuse of boiler feedwater and circulating cooling water
Treatment and reuse of smelting wastewater


Low Noise  Sludge Dewatering Equipment Stable Performance Easy To Operate 3



Packing and Delivery



1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



FAQ

Q: What’s MDS Sludge Dewatering?

A: MDS Sludge Dewatering machine has been used in Japan market for over 30 years, is a mature technology. It was developed in our Japanese research center (Japan Benenv Co., Ltd.). We have Japanese engineers for technical support and quality control, other Chinese manufacturers they are just copy-cats from this Japanese technology, they are not original and lack of experience on this technology.

Q: What type of sludge is MDS Sludge Dewatering applicable to?

A: It is applicable to various kinds of sludge such as waste activated sludge, dissolved-air floatation sludge and so forth. The thickening mechanism of this equipment enables dewater not only highly-concentrated sludge but also low-concentrated sludge with ease.

Q: What’s the application scope of MDS Sludge Dewatering?

A: It is widely applied in Municipal water and wastewater treatment plants, Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants, Food/beverage production plants, Dairy farming/Meat processing plants, Chemicals manufacturing plants, Machinery manufacturing/Metal processing plants, Paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc..

Q: What’s the material of MDS Sludge Dewatering?

A: It is Stainless Steel, we choose SUS304H, SUS316L, etc, some key parts we import from Japan, we also have our own workshop in Japan for production.

Q: What’s the equipment used together with MDS Sludge Dewatering?

A: Sludge pump, polymer dosing pump, washing pump, air compressor.

Q: Why aren’t your rings carbonized like other companies’?

A: Carbonization is to harden and strengthen the metal surface. Our rings material is called 304 hardened steel (SUS304H), which is directly treated by our steel supplier, this hardened stainless steel can make the hardness of carbonized steel up to HV380-420 in China. Most of other manufacturers can reach to only HV250. This hardened steel SUS304H is 3 times expensive than normal SUS304, so other manufacturers they prefer to choose the normal material and need to increase the thickness of rings in order to increase the hardness, actually, increase the thickness of rings will affect the dewatering effects.

Q: How to choose the right model?

A: Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
