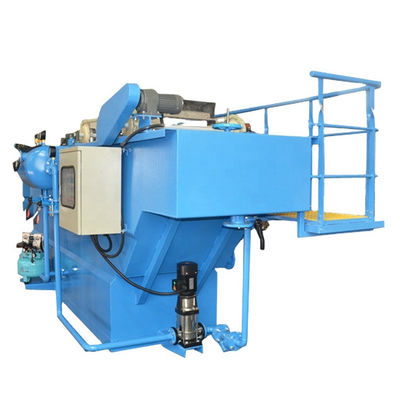

Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable

Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable
Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable
Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable

Large Image :  Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable

Product Details:
Place of Origin: China
Brand Name: Benenv
Certification: ISO 9001, CE Certificate
Model Number: Standard DAF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package for dissolved air flotation
Delivery Time: 5-8 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Sets per 6 year

Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable

Description
Product Name: Dissolved Air Flotation Application: Waste Water Treatment
Material: Carbon Steel Or Stainless Steel Warranty: 2 Years
Service Life: >10 Years Electrical Components: Schneider
Motor: Bauer, Nissei, Sew Operation: 24 Hours Automatic Running
After-sales Service Provided: Engineers Available To Service Machinery Overseas Certification: ISO 9001, CE Certificate
Highlight:

dissolved air flotation system

,

dissolved air flotation thickener

,

daf system

DAF Clarifier Water Treatment Plant Dissolved Air Flotation Equipment For Sewage



DAF equipment is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid ,oil and grease etc. Benenv DAF equipment is an innovation combined with traditional dissolved air flotation concept and modern technology.


Brief Introduction of Dissolved Air Flotation


Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.



Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable 0

Principle of Dissolved Air Flotation



DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.



Air flotation separation technology of Benenv DAF dissolved air flotation dissolves air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.



Air flotation technology of DAF dissolved air flotation plays an important role in solid-liquid separation (Simultaneously reduce COD, BOD, chroma, etc). Firstly, mix flocculating agent into raw water and stir thoroughly. After the effective retention time (lab determines the time, dosage and flocculation effect), the raw water enters into the contact zone where microscopic air bubbles adhere to the floc and then flows into the separation zone. Under the buoyancy effects, the tiny bubbles float the flocs to the surface, forming a sludge blanket. A skimming device removes the sludge into the sludge hopper. Then the lower clarified water flows into the clean-water reservoir through the collecting pipe. Some of water are recycled to the flotation tank for the air dissolving system, while others will be discharged.



Model Productivity (m3/h) Water volume (m3/h) Power (kw) Blows form machine power (kw) Air flotation pot specification (mm)
XRWF-11-5 4-5 1.5-2 3 0.75 φ400×1000
XRWF-11-10 8-10 2-3 3 0.75 φ500×1512
XRWF-11-15 10-16 3-4 3 0.75 φ500×1512
XRWF-11-20 15-20 5-7 7.5 1.1 φ500×1512
XRWF-11-30 20-30 6-10 7.5 1.1 φ500×1512
XRWF-11-40 30-40 8-13 7.5 1.1 φ600×1880
XRWF-11-50 40-50 15-20 7.5 1.5 φ600×1880
XRWF-11-60 50-60 18-27 7.5 1.5 φ600×1880
XRWF-11-80 70-80 24-32 7.5 1.5 φ650×2034
XRWF-11-105 90-105 30-35 15 1.5 φ700×1980
XRWF-11-150 125-150 60-80 22 2.2 φ800×1980
XRWF-11-200 175-200 80-100 22 3 φ800×2100
XRWF-11-250 225-250 110-120 22 3 φ800×2400
XRWF-11-300 280-300 120-180 37 3 φ1000×2900


Application Industry



The aim of dissolved air flotation is to separate the fine suspended solids in water, algae and micro-floc. And dissolved air flotation can be used in the following industries:

l Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on.

l High concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on.

l Biochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on.

l Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater.

l Manufacturing waste: electroplating, painting, etc.

l Purification: river, landscape, recycle water and so on.



Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable 1



DAF Features

1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large
quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to
the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L



Packing and Delivery



1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Automatic DAF Dissolved Air Flotation Water Treatment Remote Controllable 2



FAQ
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System.

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan,Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service.

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
