Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

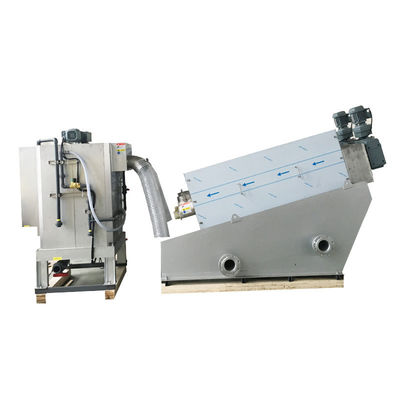

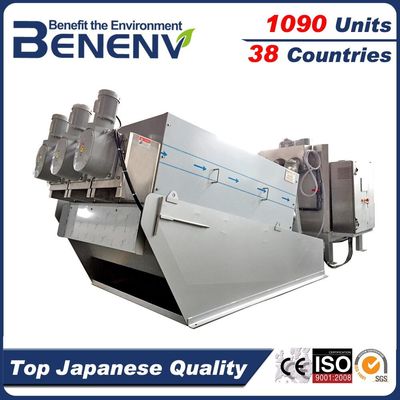

Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant

Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant
Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant

Large Image :  Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: MDS312
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability: 30 Sets per month

Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant

Description
Product Name: Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant Type: Screw
Capacity: 1-800 DS-kg/hr Size: L3570*W1260*H1670 Mm
Power: 1.2 KW Materials: SUS304 Or SUS316
Motor Brand: SEW Or NISSEI Protection Certificates & IP: UL,CE, Water Proof(IP65) CCC
Screw Shaft Treatment: SUS316L, Tungsten Carbide Coating Electrical Components Brand: Schneider, Omron, Siemens
Solenoid Valve Brand: US,ASCO Spray System Brand: Japan Origin, H.IKEUCHI
Highlight:

dewatering screw press machine

,

sludge dewatering system

Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant



MDS Sludge Dehydrator

Brief Introduction

Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.



The Sludge Dewatering Press is an enclosed high performance sludge dewatering system. It utilizes a central screw auger and a slowly oscillating multi-disk filter to gradually increase pressure on flocculated sludge to produce an exceptionally dry sludge cake. With electrical, water and polymer usage, and high capture rates the system is very cost effective.



Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant 0



The Sludge Dewatering Press can be provided with all equipment required for dewatering included and factory mounted, piped and wired on a single stainless steel skid. This equipment includes the sludge pump, wash water pump, polymer dosing system and control panel. The system features fully automated one pushbutton startup and shutdown. Once started up the system can run unattended and can be set to shutdown automatically with no operator intervention.



The Sludge Dewatering Press is constructed entirely of stainless steel.

The Sludge Dewatering Press features: • Enclosed to minimize odors and noise
• Very low wash water usage(1/8 compared with belt press)
• Very low power consumption(1/20 compared with centrifuge)
• High cake solids • Minimal operator requirement
• Easy to operate and maintain
• Auto start-up, run and shutdown
• Touch screen operation optional
• Sludge Flow and Cake Monitoring System
• Available with many other options like Dairy, Palm Oil, etc.

The Sludge Dewatering Press offers a completely operational, skid mounted and self-contained system which can include:
• Screw Press
• PLC Controls
• Sludge Pumps
• Back Wash System
• Flocculation System
• Polymer Dosing Unit
• Sludge Cake Conveyor



Specifications of MDS-302 sewage and sludge machine
Main Parameters
Capacity
DS-kg/hr
60~120
Flow Sludge Concentration (TS) 0.2% (m³/h) 30
0.4% (m³/h) 15
1% (m³/h) 12
2% (m³/h) 6
3% (m³/h) 4.8
5% (m³/h) 2.4
Mechanical parameters Outlet height mm 495
Size mm L3570*W1260*H1670
Weight kg 1350
Run Weight kg 2130
Power Kw 1.2
Water usage L/h 80



Running Conditions



Model

WAS Sludge & Chemical Precipitated Sludge

(Thin Sludge)

Dissolved Air Flotation

Sludge

Mixed Raw Sludge Aerobic Digested Sludge & Sewage Sludge
Sludge Concentration (TS) 0.2% 1% 2% 5% 3%
MDS-101 ~2 kg-DS/hr (1.0 m³/hr) ~3 kg-DS/hr (0.3 m³/hr) ~5 kg-DS/hr (0.25 m³/hr) ~10 kg-DS/hr (0.2 m³/hr) ~13 kg-DS/hr (0.43 m³/hr)
MDS-131 ~4 kg-DS/hr (2.0 m³/hr) ~6 kg-DS/hr (0.6 m³/hr) ~10 kg-DS/hr (0.5 m³/hr) ~20 kg-DS/hr (0.4 m³/hr) ~26 kg-DS/hr (0.87 m³/hr)
MDS-132 ~8 kg-DS/hr (4.0 m³/hr) ~12 kg-DS/hr (1.2 m³/hr) ~20 kg-DS/hr (1.0 m³/hr) ~40 kg-DS/hr (0.8 m³/hr) ~52 kg-DS/hr (1.73 m³/hr)
MDS-202 ~16 kg-DS/hr (8.0 m³/hr) ~24 kg-DS/hr (2.4 m³/hr) ~40 kg-DS/hr (2.0 m³/hr) ~80 kg-DS/hr (1.6 m³/hr) ~104 kg-DS/hr (3.47 m³/hr)
MDS-301 ~20 kg-DS/hr (10 m³/hr) ~30 kg-DS/hr (3.0 m³/hr) ~50 kg-DS/hr (2.5 m³/hr) ~100 kg-DS/hr (2.0 m³/hr) ~130 kg-DS/hr (4.33 m³/hr)
MDS-302 ~40 kg-DS/hr (20 m³/hr) ~60 kg-DS/hr (6.0 m³/hr) ~100 kg-DS/hr (5.0 m³/hr) ~200 kg-DS/hr (4.0 m³/hr) ~260 kg-DS/hr (8.67 m³/hr)
MDS-303 ~60 kg-DS/hr (30 m³/hr) ~90 kg-DS/hr (9.0 m³/hr) ~150 kg-DS/hr (7.5 m³/hr) ~300 kg-DS/hr (6.0 m³/hr)

~390 kg-DS/hr

(13 m³/hr)

MDS-352 ~80 kg-DS/hr (40 m³/hr) ~120 kg-DS/hr (12 m³/hr) ~200 kg-DS/hr (10 m³/hr) ~400 kg-DS/hr (8.0 m³/hr) ~520 kg-DS/hr (17.3 m³/hr)
MDS-353 ~120 kg-DS/hr (60 m³/hr) ~180 kg-DS/hr (18 m³/hr) ~300 kg-DS/hr (15 m³/hr) ~600 kg-DS/hr (12 m³/hr)

~780 kg-DS/hr

(26 m³/hr)



Replacement time of vulnerable part is an estimated time, in the actual operation process, the types of sludge, the means of processing, operation adjustment status and the running time of the day, will affect the replacement time.( Replacement cycle of vulnerable part is calculated as 365 days per year, 8 hours/day of running time.)



Enclosed Dewatering Screw Press Machine Durable Structure Corrosion Resistant 1

FAQ
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan,Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.

Sludge Dewatering Press,Sludge Dewatering Machine,Screw Press.
