Product Details:
|
| Capacity: | 1000 M3/h | Size: | L1000*W1625*H1750 Mm |
|---|---|---|---|
| Power: | 0.75 KW | Materials: | SUS304 |
| Electrical Components Brand: | Schneider, Omron, Siemens | Automatic Grade: | Automatic |
| Application: | Chemical | Condition: | New |
| Highlight: | automatic chemical dosing unit,polymer dosing system |
||

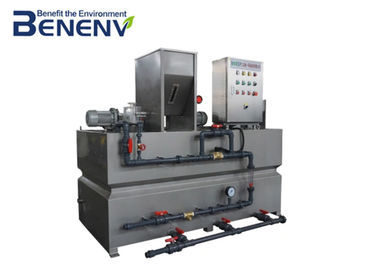

High quality Automatic Chemical Dosing And Mixing System For Wastewater Flocculation
Brief Introduction
Model Selection
|
Model
|
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)
|
Dissolved Air Flotation Sludge
|
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
|
||
|
Sludge Concentration (TS)
|
0.2%
|
1%
|
2%
|
5%
|
3%
|
|
MDS 051
|
~0.4 kg-DS/hr
(0.2 m³/hr) |
~0.6 kg-DS/hr
(0.06 m³/hr)
|
~2 kg-DS/hr
(0.1 m³/hr)
|
~4 kg-DS/hr
(0.08 m³/hr) |
~5 kg-DS/hr
(0.16 m³/hr) |
|
MDS 101
|
~2 kg-DS/hr
(1.0 m³/hr) |
~3 kg-DS/hr
(0.3 m³/hr) |
~5 kg-DS/hr
(0.25 m³/hr) |
~10 kg-DS/hr
(0.2 m³/hr) |
~13 kg-DS/hr
(0.43 m³/hr) |
|
MDS 131
|
~4 kg-DS/hr
(2.0 m³/hr) |
~6 kg-DS/hr
(0.6 m³/hr) |
~10 kg-DS/hr
(0.5 m³/hr) |
~20 kg-DS/hr
(0.4 m³/hr) |
~26 kg-DS/hr
(0.87 m³/hr) |
|
MDS 132
|
~8 kg-DS/hr
(4.0 m³/hr) |
~12 kg-DS/hr
(1.2 m³/hr) |
~20 kg-DS/hr
(1.0 m³/hr) |
~40 kg-DS/hr
(0.8 m³/hr) |
~52 kg-DS/hr
(1.73 m³/hr) |
|
MDS 202
|
~16 kg-DS/hr
(8.0 m³/hr) |
~24 kg-DS/hr
(2.4 m³/hr) |
~40 kg-DS/hr
(2.0 m³/hr) |
~80 kg-DS/hr
(1.6 m³/hr) |
~104 kg-DS/hr
(3.47 m³/hr) |
|
MDS 311
|
~20 kg-DS/hr
(10 m³/hr) |
~30 kg-DS/hr
(3.0 m³/hr) |
~50 kg-DS/hr
(2.5 m³/hr) |
~100 kg-DS/hr
(2.0 m³/hr) |
~130 kg-DS/hr
(4.33 m³/hr) |
|
MDS 312
|
~40 kg-DS/hr
(20 m³/hr) |
~60 kg-DS/hr
(6.0 m³/hr) |
~100 kg-DS/hr
(5.0 m³/hr) |
~200 kg-DS/hr
(4.0 m³/hr) |
~260 kg-DS/hr
(8.67 m³/hr) |
|
MDS 313
|
~60 kg-DS/hr
(30 m³/hr) |
~90 kg-DS/hr
(9.0 m³/hr) |
~150 kg-DS/hr
(7.5 m³/hr) |
~300 kg-DS/hr
(6.0 m³/hr) |
~390 kg-DS/hr
(13 m³/hr) |
|
MDS 412
|
~80 kg-DS/hr
(40 m³/hr) |
~120 kg-DS/hr
(12 m³/hr) |
~200 kg-DS/hr
(10 m³/hr) |
~400 kg-DS/hr
(8.0 m³/hr) |
~520 kg-DS/hr
(17.3 m³/hr) |
|
MDS 413
|
~120 kg-DS/hr
(60 m³/hr) |
~180 kg-DS/hr
(18 m³/hr) |
~300 kg-DS/hr
(15 m³/hr) |
~600 kg-DS/hr
(12 m³/hr) |
~780 kg-DS/hr
(26 m³/hr) |
Main Features
(1) Three slots in one device, continuous preparation, simple operation and maintenance.
(2) Dry powder or liquid polymer can be double - feed, able to meet different needs.
(3) PLC automatic operation, saving labor.
(4) In Pharmacy , the dosing screw pump or metering pumps can be used (the conventional use of the former) , measurement precise and adjustable.
(5) Equipment has no foundation seat or fixer, attractive appearance, easy maintenance. Low cost.
Installation Drawing
Process principle

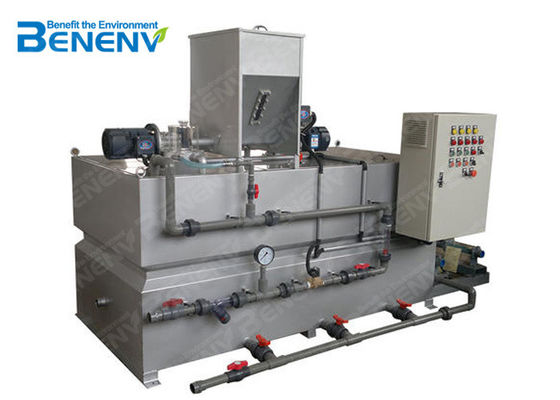

Three-chamber dosing device is an automatic, continuous and integrated dry powder dispensing and dosing device. The device is composed of water supply system, dry powder adding system, dissolving and curing system and automatic control system.
The device is an automatic continuous configuration and dosing system of powder medicament. The dry powder agent enters the premix from the screw propeller at the bottom of the hopper to premix with water. The wet material enters the preparation tank to dilute and mix.
When the liquid level in the storage tank is at a high level, the preparation process will stop automatically. When the solution drops to a low level, the batching process will start automatically. The preparation tank and the curing tank are equipped with agitators to dilute and mature the agents. The mixture flow and concentration can be determined by adjusting the inlet flow and the rotating speed of the screw shaft.
This device is controlled by PLC, with high degree of automation, stable performance and simple operation.
Preparation process
Dry powder feeding system is designed for automatic continuous preparation and feeding system of powdery materials. The whole process from powder to prepared solution achieves automatic and continuous operation. The dry powder enters the mixer from the hopper according to the required dosage (setting the screw speed), and then enters the mixing tank after wetting for dilution (setting the inflow rate) to reach the required concentration of the solution. The diluted solution flows through the curing tank and then into the storage tank. The dosing/liquid is transported to the point/fixed/point by the metering pump. When the solution in the storage tank is at a low liquid level, the liquid level switch outputs the signal and starts the equipment to reprepare the solution. When the solution in the storage tank is at a high liquid level, the liquid level switch sends a signal, and the repeating process stops. If the storage slot is empty, the repeat starts again. This allows the system to run continuously, with the mixer continuously stirring the solution. The material level meter of the hopper continuously detects the material level, sends a signal when it reaches the low level, closes the inlet solenoid valve, and automatically starts after adding materials.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
