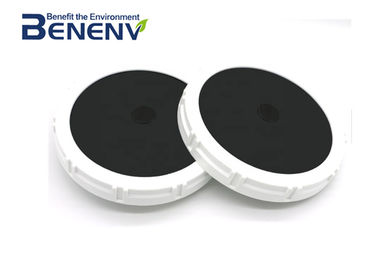

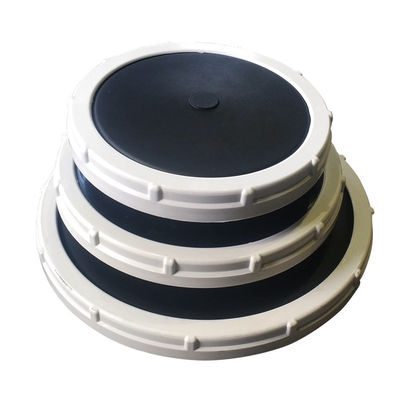

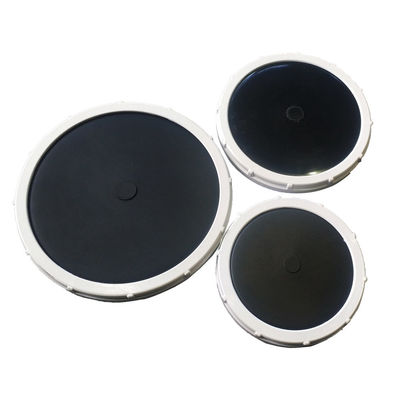

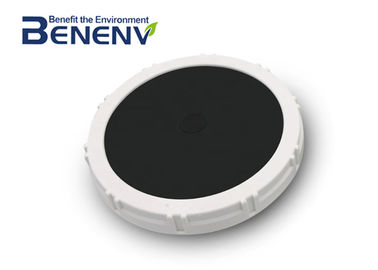

EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming

Certification
China Benenv Co., Ltd certification
China Benenv Co., Ltd certification
I'm Online Chat Now

EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming

EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming
EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming

Large Image :  EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: Φ215
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiatable
Packaging Details: Export Plywood Case
Delivery Time: 2-4 weeks
Payment Terms: T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability: 1,000,000 pieces per Years

EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming

Description
Product Name: EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming Capacity: 1000 M3/h
Size: Φ215 Air Inlet: Modled Injection
Materials: ABS Or UPVC Or PP Warranty: 2 Years
Service Life: >5 Years Application: Wastewater Treatment
High Light:

air fine bubble diffuser

,

membrane disc diffuser

EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming



Brief Introduction



EPDM air bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble diffusers produce a plethora of very small air bubbles which rise slowly from the floor of a wastewater treatment plant or sewage treatment plant aeration tank and provide substantial and efficient mass transfer of oxygen to the water. The oxygen, combined with the food source, sewage, allows the bacteria to produce enzymes which help break down the waste so that it can settle in the secondary clarifiers or be filtered by membranes.

Technical Parameter:

Membrane material: EPDM/silicone/NBR
Plastic Tray material: ABS/UPVC/PP

EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming 0



Product Features



1. Each aeration system using customized.
2. The continue upgrading of product quality.
3. Professional project management team to ensure each project is completed on time to the best quality.
4. Perfect customer service support system.
5. The aeration film substrate having modified polyurethane,s silicone rubber EPDM inthree kinds of rubber materials and all kinds of different specifications of the diaphragm, using an extrusion technology to product ,for any a aeration brand replaced with diaphragm.
6. The vertical film texture " workers" -shaped hole
7. A rubble diaphragm adopts the mechanical hole.



Item Φ215mm

Φ260mm



Φ300mm



Working air flow (m3/h) 1.5-3 2-5 2-8
Designed air flow(m3/h) 3 4 5
Service area (m2/piece) 0.25-0.45 0.35-0.65 0.45-0.75
Oxygen utilization ratio (%) >30 >30 >30
Oxygenate capability (kgO2/h) 0.13-0.35 0.18-0.45 0.25-0.5
Water submerged depth(m) 4-8 4-8 4-8
Theoretic dynamic efficency(kgO2/kw.h) 6.5 6.5 6.5
Drag loss (pa) <3000 <3000 <3000


EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming 1



Product Application



1. Aeration of fishpond and other applications
2. Aeration of deep aeration basin
3. Aeration for excreta and animal waste water treatment plant
4. Aeration for denitrification/dephosphorization aerobic processes
5. Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6. Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant


Packing and Delivery



Bubble pack and five- layer hard carton package for disc membrane disc fine bubble diffuser



Standard hard carton package for air disc fine bubble diffuser
φ215mm(8 inch)

110*37*28mm (50pc * Flat type/carton)

110*37*28mm (50pc * Arch type/carton)

φ260mm(9 inch)

102*44*33mm (38pcs *Arch type/carton)

102*55*37mm (68pcs *Flat type/carton)

φ300mm(12 inch)

102*54*35mm (38pcs *Arch type/carton)

102*54*35mm (68pcs *Flat type/carton)

Delivery 15days after payment for air disc fine bubble diffuser



EPDM / Silicone Membrane Bubble Disc Diffuser For Aquaculture Fish Farming 2



Why Choose Us?

FAQ
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan,Great Technology And Great Quality.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .

Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.

Fine Bubble Diffuser,fine bubble air diffuser,fine bubble air disc diffuser
