|Installation Angle:||0-25°||Screw Diameter:||220-380mm|
|Screw Rotating Speed:||12-16 R/min||Materials:||SUS304 Or SUS316|
|Warranty:||2 Years||Service Life:||>10 Years|
shaftless auger screw conveyor,
spiral feeder auger screw conveyor,
shaftless small auger conveyor

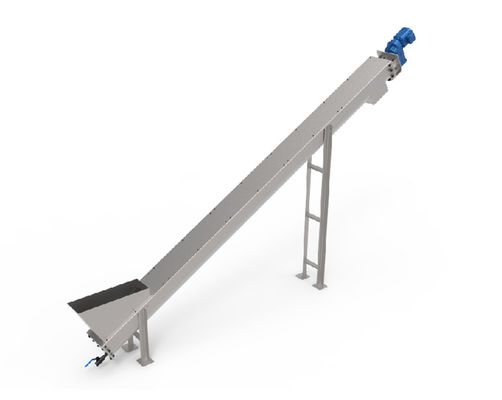

High Performance Machine Shaftless Screw Conveyor With Screw Blade
Shaftless Screw Conveyor Introduction
WLS shaftless screw conveyor increases the passage area of the material, makes the passage of the material smoother, and improves the conveying capacity. The screw shaft, the hanging bearing of the screw feeder and the head and tail shaft are connected by the embedded tongue, which is easy to install and disassemble. No axial movement, convenient maintenance, simple operation, simple maintenance, novel structure, stable transmission, wide range of use, no blocking, low energy consumption and noise, long service life, etc. Spiral feeder has the advantages to solve the problem of conveying dry powdery materials such as cement, ore, coal, chemical fertilizers that can easily fly and seriously affect the surrounding environment. At the same time, the screw feeder can also complete mixing, stirring and cooling when conveying materials The operation can be applied to the unloading or loading of various materials and the transportation of scattered particles in the warehouse. The selection of the screw conveyor can determine the size, screw speed and power of the screw conveyor according to the nature of the material being conveyed, the volume, distance, tilt angle, installation environment, etc. The spiral blades on the screw conveyor have right-handed and There are two types of left-hand rotation. At present, the right screw is first considered for conveying materials by horizontal screw feeders. Variable screw pitch technology can also be used to improve the conveying capacity and use effect of the screw conveyor. The inlet and outlet of the screw conveyor can be square or circular. Choice, can also be customized according to site requirements.
Screw Conveyor Model & Installation Dimensions
Auger conveyor Technical parameters
|Power or motor||1.1/1.5/3.7/4.4 kw/depends on your model|
|Frame material||stainless steel/carbon steel/galvanized steel|
conveyor Screw Main Features
(1) The driving device adopts parallel shaft helical gear reducer, with low noise and easy to maintain.
(2) Direction of transportation is determined by the rotating direction of spiral blade& motor which can realize bidirectional-transportation.
(3) The lined U-shaped tank, with high abrasive resistance performance and long lifespan, is easy to replace.
(4) No clogging exists, low noise and easy for to maintain.
Installation Drawing for Shaftless Screw Conveyor
Screw Conveyor Product details
|Horizontal Rotation speed||18rpm|
|Incline Rotation speed||>18rpm|
|Protection Level||IP55 F|
|Product Keywords||slurry screw conveyor,sludge transportion,sludge cake conveyor|
Screw Conveyor Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
Why Choose Us?
1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.
2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
