Product Details:
|
Name: | Sludge Dewatering Equipment | Product Name: | Sludge Dewatering Equipment Wastewater Sludge Press Machine For Cake Factory Wastewater |
---|---|---|---|
Power: | Customized | Type: | Screw Press |
Application: | Cake Factory Wastewater | Capacity: | 0.8-1Ton/h |
After-sales Service Provided: | Online Support | Operation: | Full Automatic,24 Hours Automatic Running |
Weight: | 300-1500KG | ||
High Light: | Containerized dewatering screw press machine,ss316 dewatering screw press machine,Cake Factory multi plate screw press |

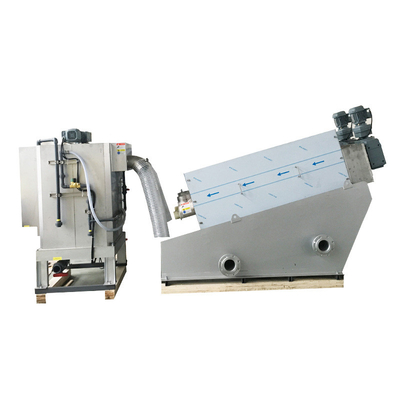

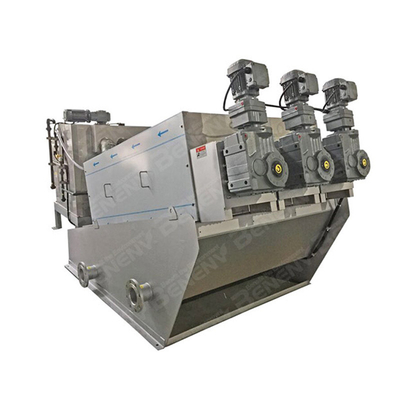

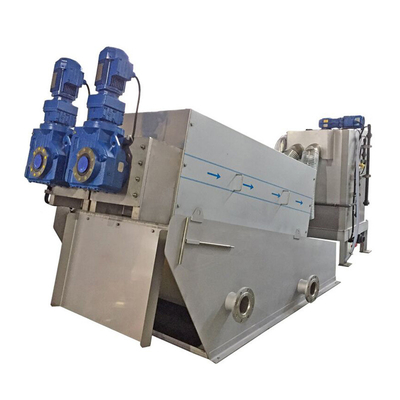

Sludge Dewatering Equipment Wastewater Sludge Press Machine For Cake Factory Wastewater
Screw Press Sludge Dewatering Machine, it’s clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of plant construction. The system utilizes the screw and the moving rings to clean itself as a clog-free system and is controlled by a PLC. it’s a technology that can replace the traditional filter press such as a belt press and frame press. The screw speed is very low, so has low power consumption as well as water consumption in contrast to a centrifuge. The system utilizes polymers with automatic dosing control.
The Sludge Dewatering Press can be provided with all equipment required for dewatering included and factory mounted, piped and wired on a single stainless steel skid. This equipment includes the sludge pump, wash water pump, polymer dosing system and control panel. The system features fully automated one pushbutton startup and shutdown. Once started up the system can run unattended and can be set to shutdown automatically with no operator intervention.
Process of Sludge Dewatering Equipment
The conditioned sludge flows into the filter chamber from the flocculation tank and is pushed to the discharging end. The thread on the shaft gets progessively tighter as the wasterwater flows through the system, this causes the pressure on the sludge to increase. The water is then separated from the sludge. The movement of the moving and fixed rings cleans the gaps between them and prevents blockage traditionally experienced in similar systems. The filtered sludge cakes are pushed forward by the shaft and finally discharged from the end.
Applications of Sludge Dewatering Equipment
1- municipal industry
2- food industry
3- drink industry
4- slaughtering industry
5- printing industry
6- oil industry
7- paper industry
8- leather industry
Model Selection
Model |
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)
|
Dissolved Air Flotation Sludge
|
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
|
||
Sludge Concentration (TS) |
0.2%
|
1%
|
2%
|
5%
|
3%
|
MDS 051 | ~0.4 kg-DS/hr (0.2 m³/hr) |
~0.6 kg-DS/hr
(0.06 m³/hr)
|
~2 kg-DS/hr
(0.1 m³/hr)
|
~4 kg-DS/hr (0.08 m³/hr) |
~5 kg-DS/hr (0.16 m³/hr) |
MDS 101 | ~2 kg-DS/hr (1.0 m³/hr) |
~3 kg-DS/hr (0.3 m³/hr) |
~5 kg-DS/hr (0.25 m³/hr) |
~10 kg-DS/hr (0.2 m³/hr) |
~13 kg-DS/hr (0.43 m³/hr) |
MDS 131 | ~4 kg-DS/hr (2.0 m³/hr) |
~6 kg-DS/hr (0.6 m³/hr) |
~10 kg-DS/hr (0.5 m³/hr) |
~20 kg-DS/hr (0.4 m³/hr) |
~26 kg-DS/hr (0.87 m³/hr) |
MDS 132 | ~8 kg-DS/hr (4.0 m³/hr) |
~12 kg-DS/hr (1.2 m³/hr) |
~20 kg-DS/hr (1.0 m³/hr) |
~40 kg-DS/hr (0.8 m³/hr) |
~52 kg-DS/hr (1.73 m³/hr) |
MDS 202 | ~16 kg-DS/hr (8.0 m³/hr) |
~24 kg-DS/hr (2.4 m³/hr) |
~40 kg-DS/hr (2.0 m³/hr) |
~80 kg-DS/hr (1.6 m³/hr) |
~104 kg-DS/hr (3.47 m³/hr) |
MDS 311 | ~20 kg-DS/hr (10 m³/hr) |
~30 kg-DS/hr (3.0 m³/hr) |
~50 kg-DS/hr (2.5 m³/hr) |
~100 kg-DS/hr (2.0 m³/hr) |
~130 kg-DS/hr (4.33 m³/hr) |
MDS 312 | ~40 kg-DS/hr (20 m³/hr) |
~60 kg-DS/hr (6.0 m³/hr) |
~100 kg-DS/hr (5.0 m³/hr) |
~200 kg-DS/hr (4.0 m³/hr) |
~260 kg-DS/hr (8.67 m³/hr) |
MDS 313 | ~60 kg-DS/hr (30 m³/hr) |
~90 kg-DS/hr (9.0 m³/hr) |
~150 kg-DS/hr (7.5 m³/hr) |
~300 kg-DS/hr (6.0 m³/hr) |
~390 kg-DS/hr (13 m³/hr) |
MDS 412 | ~80 kg-DS/hr (40 m³/hr) |
~120 kg-DS/hr (12 m³/hr) |
~200 kg-DS/hr (10 m³/hr) |
~400 kg-DS/hr (8.0 m³/hr) |
~520 kg-DS/hr (17.3 m³/hr) |
MDS 413 | ~120 kg-DS/hr (60 m³/hr) |
~180 kg-DS/hr (18 m³/hr) |
~300 kg-DS/hr (15 m³/hr) |
~600 kg-DS/hr (12 m³/hr) |
~780 kg-DS/hr (26 m³/hr) |
Advantages of Sludge Dewatering Equipment
Since MDS dewatering press can be used directly to concentrate and dewater the low-solid sludge from aeration tanks or secondary clarifiers, the users don't have to build a thickening tank or a storage tank any more while they have to when using other types of sludge dehydrators, especially the belt filter presses. Then significant civil engineering cost and floor area are saved.
Furthermore, the phosphorus emission problem caused by aeration tanks or secondary clarifiers can be well prevented.
Fixed/moving rings replace filter cloths, self-cleaning, clog-free
As MDS using fixed rings and moving rings as filter media instead of filter cloths makes it especially good at treating oily sludge when compared with other types similar sludge dehydrator. The moving rings rotate up and down to the fixed rings when the gaps between them are cleaned to prevent from clogging.
Full-automatic control, simple operation and management
There are no easily blocked pieces such as belt and filtration pore in Multi-Disk Screw Press. Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
BENENV is a company with over 40 years of experience in the sludge treatment on design, engineering, manufacturing and installation. We focus on the dewatering treatment (first & second dewatering, biological aerobic drying) and resource utilization of sludge from wastewater of all industries. Our products line includes Multi-disk screw press series (MDS), KDS thickening and dewatering series, electric osmosis equipment, sludge drying machine and sludge incinerator.
Benenv are always focusing on independent technology innovation of themselves. We have our own Japanese branch company "Japan Benenv Co., Ltd.", which is technology research and design center and also help headquarters to do the Japanese Quality Control. Benenv have already got international qualifications as ISO9001: 2008 and CE marks for all products, national awards as Utility Model Patent for MDS series and KDS, sludge drier, etc, and High-tech Enterprises Qualification, etc. products are mostly exported to the European and North American countries. BENENV are also working closely with top 10 universities and government organizations in China and Japan such as Tokyo Industry University and Nanjing Agriculture University to keep our technology of cutting-edge and transform science and technology into productivity.
Packaging and Delivery
1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service.
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
