Leo Filter Press Beverage Filter Press Machine Polypropylene Filter Press Plate

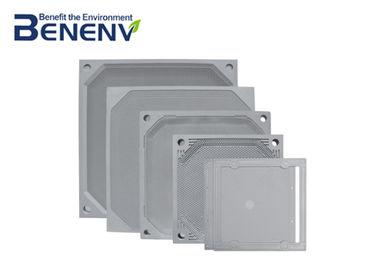

Filter press filter plate size: 250mmX250mm;400mmX400mm,470mmX470mm,500mmX500mm,630mmX630mm,800mmX800mm,1000mmX1000mm,1200mmX1200mm,1250mmX1250mm,1500mmX1500mm,1500mmX2000mm,2000mmX2000mm
Filter ress filter plate have two kinds: chamber filter plate,membrane fiter plate
Filter press filter plate application:

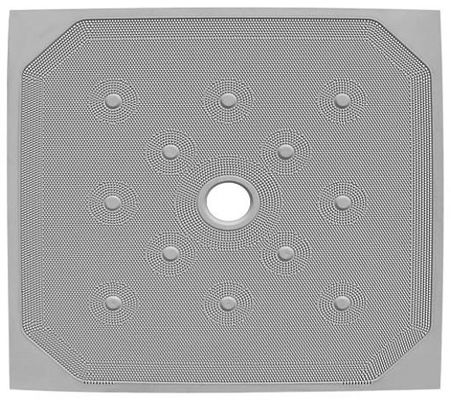

Filter press filter plate always used on chamber recessed filter press,which only have only one kind of filter press plate with double side chamber recessed,different as the plate and frame filter press,chamber filter press only have one piece filter plate,but plate and frame filter press will have two different style filtering elements,filter plate and filter frame,filter cloth will be placed between filter plate and filter frame.
Filter press filter press plate can be designed to be different sizes and endurable filtering temprature and pressure for different material filtering.
Among standard size filter plates we also have special designed un-standard sizes for foreign brand chamber filter presses to make sure every size are the same.
1. filter press filter plates adopt high class pp material,die pressing PP material into chamber filter press plate mould
2. Leo filter press filter plates arranges for different filtering pressure design for
3. filter press filter plate designed to be different filtering temprature for
4. different filter pressfilter plate thickess
5. different filter press filter plate cake thickness
6. different filter press filter plate size as requirements
7. also speccial design filter press filter plate handles
According to material, our plate has following types: reinforced polypropylene plate, glass fiber reinforced polypropylene plate, rubber membrane plate, high pressure polypropylene membrane plate, cast iron plate, stainless steel plate etc. The feed method can be divided to central feeding, corner feeding and up central feeding according to location of inlet. Customers can choose suitable plate material as per their actually production process.
Special Design Filter Plate
TCC &TCM (Temperature Controlled Chamber Plate with external heating &Temp. Controlled Membrane Plate)
In this case the design of the combination plate concerning theoperation is similar to a membrane plate. The membrane isreplaced by a very good heat conductive stainless steel sheetwith a drainage grid.
The heating media flows externally between the surface of the body plate and the steel sheet fixed on the top . The heat transition via the filter cloth to the cake is significantly improved.
The very different heat expansion coefficients are compensated by a special liquid sealed attachment of the stainless steel sheet.
This system allows the most efficient and fastest cake drying
Urban sewage sludge, tap water sludge, dredging sludge, industrial sludge, industrial solid waste,Chlor alkali, inorganic salt, rayon viscose, glycerin, silica, dye, pigment, silicic acid, sodium sulfate,Manganese sulfate, iron hydroxide, titanium dioxide, fluorine chemical industry, lithium chemical industry, silicon carbide, nickel cobalt chemical industry,Non ferrous metals, metal tailings, clean coal, tail coal, non-metallic ore
Wine, rice wine, alcohol, edible oil, citric acid, fruit juice pectin, soy sauce, syrup,All kinds of starch, concentrated soup, seaweed gum, beer wort, palm oil, beet sugar, sucrose,Pharmaceutical intermediates, APIs, Chinese patent medicines, fermentation broth, enzyme preparations
Packing and Delivery
1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
1. We will supply operation manual of filter press and filtration elements which introduced the specifications and warnings.
2. We also can optimize the technical data of filtration and constitute operation regulations for customers accordingly.
3. We can supply the filtration flow chart according to different material and demands.
4. We can offer the filtration testing free of charge.
5. We could offer training in free.
