Product Details:
|
Filter Area: | 40 M² | Pressure: | 1 MPa |
---|---|---|---|
Materials: | TPE | Service Life: | 5 Years |
Warranty: | 2 Years | Usage: | Sewage Treatment、Sludge Treatment |
Highlight: | chamber filter press,plate and frame filter press |

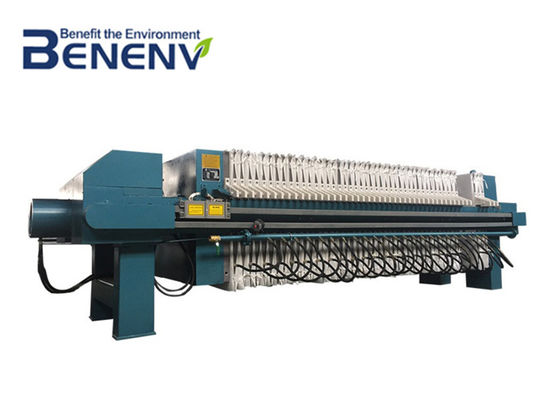

Efficient Fully Automatic Chamber Filter Press Machine For Dredging Rivers
Structural Advantages
Van filter plate
1. The filter plate is made of reinforced polypropylene, with overall variable cross-section design, so that its flow resistance is small, the flow rate is fast, and the filtering efficiency is higher than that of the same filter plate;
2. Adopt special raw material formula and pressing process, equipped with 4000 ton high pressure hydraulic press, and the mechanical performance indexes of the filter plates are higher than the relevant national standards;
3. The filter plate is made of TPE elastomer and alkali free glass fiber polypropylene, which makes the filter plate have the elasticity of rubber filter plate, and enhance the toughness and rigidity of polypropylene filter plate. After being processed by CNC machining center, the flatness of filter plate is less than 25 μ m, which makes the filter plate have good sealing performance when it is pressed, and there is no spray or leakage when it is fed.
Model |
Feed Material concentration (%) |
Filter Area (m²) |
Power (KW) |
Capacity (t/h) |
Weight (kg) |
Overall Dimension (mm) |
G50-80 | 20-40 | 50 | 15 | 0.80-1.60 | 3456 | 4110*1400*1230 |
G80-80 | 20-40 | 80 | 15 | 1.32-2.60 | 4584 | 4990*1400*1230 |
G100-100 | 20-40 | 100 | 24 | 1.70-4.00 | 6628 | 4900*1900*1600 |
G150-125 | 20-40 | 150 | 27.5 | 2.50-5.00 | 9800 | 6010*2000*1600 |
G200-125 | 20-40 | 200 | 35.5 | 3.00-7.00 | 12500 | 7050*2260*1600 |
G250-125 | 20-40 | 250 | 44.5 | 4.00-8.00 | 14000 | 7890*2260*1600 |
G300-125 | 20-40 | 300 | 52.5 | 5.00-7.00 | 25000 | 8800*2260*1925 |
G400-150 | 20-40 | 400 | 62.5 | 6.00-10.00 | 30000 | 10670*2260*1925 |
G500-150 | 20-40 | 500 | 82.5 | 8.00-12.00 | 36500 | 12650*2260*1925 |
Performance characteristics
1. Long gravity dewatering zone, large weight bearing, strong processing capacity, low energy consumption and low operating cost.
2, the unique design of oblique extended wedge area, more stable operation, large capacity.
3. Multi-roll diameter decreasing type backfill roller, compact layout, high solid content of filter cake.
4. Equipped with the new automatic deviation correction and tensioning system, the work is stable. Greatly improve the life of the filter belt.
5. Two independent backwashing systems are adopted.
Packing and Delivery
1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
