Product Details:
|
| Water Vaporation: | 50-2500 Kg/hr | Size: | L6600*W1800*H2000 Mm |
|---|---|---|---|
| Power: | 7.5 KW | Materials: | SUS304 Or Q235 |
| Motor Brand: | SEW | Electrical Components Brand: | Schneider, Omron, Siemens |
| Tail Gas Treatment: | Spray Tower,Fabric Filter | Energy Sources: | Oil , Gas |
| High Light: | horizontal drying machine,industrial rotary dryer |
||

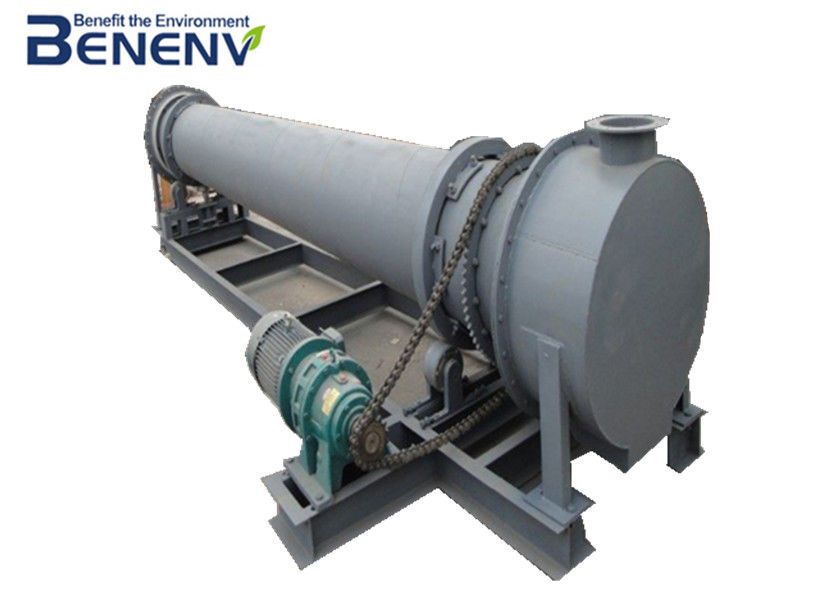

Good Price Hollow Blade Dryer Sludge Coal Ash Horizontal Drying Machine
Mounting Position Dimensions
Standard Specifications
| Model No. | BRD-150 | BRD-300 | BRD-500 | BRD-1000 | BRD-2000 | BRD-2500 | |
| Water vaporation(kg/h) | 150 | 300 | 500 | 1000 | 2000 | 2500 | |
| Energy consumption(kW) | 11.5 | 18 | 26 | 52 | 102 | 137 | |
| Machine weight(ton) | 6.5 | 10 | 17 | 28 | 65 | 76.5 | |
| General dimension |
W(mm) | 2215 | 3500 | 3700 | 4600 | 5800 | 7200 |
| L(mm) | 7600 | 8000 | 8600 | 10500 | 12000 | 14500 | |
| H(mm) | 2270 | 3200 | 3600 | 4500 | 4600 | 5200 | |
Using of Sludge Dryer Drying Machine:
The sludge dryer drying machine mainly consists of the fan, the dispersing device, the belt feeding machine, the feeding machine, the rotary drum, the heat source, the belt type discharging machine, the unloading device and the distribution cabinet. Therefore, the working area of the Vantaa sludge dryer includes the feeding area, the inclined lift plate area, the cleaning area and the guide area.
1. In the guide area, the wet sludge enters the zone and the hot wind contact with the hot air rapidly evaporates. The materials are copied by the large guide Angle, which is not bonded to be imported into the next workspace.
2. In the discharge area, the drum is not set in this area, and the material can roll to the discharge port in this area to complete the drying process.
3. Cleaning area, wet sludge in this area is taking up forming curtain material status, copy board phenomenon of wall material to fall easily formed binding drum, cleaning device is designed in this area due to the equipment, cleaning device was reasonably clean the inner surface adhesion material, in this process, the cleaning device for material group ball agglomerate also plays a role of broken, thus increasing the heat exchange area, and to improve the drying rate;
4. The feed board area, wet sludge in the region has a low moisture state of loose, material in this area has not sticking phenomenon, after heat exchange materials to achieve the required moisture state, in the final discharge area. River channel sludge with a variety of microorganisms has been neglected and has brought many difficulties to urban environmental governance. The sludge drying machine developed by our factory can dry the sludge and facilitate the production of sludge bio-organic fertilizer, which is the preferred drying equipment of organic fertilizer manufacturers.
With the augmentation of the national economic strength, national environmental protection consciousness enhancement, the urban sewage treatment industry gets rapid development, urban sludge yield increasing, sludge disposal and utilization problem is becoming more and more attention by people. The drying of sludge can make the sludge agricultural use, fuel use, incineration and even reduce landfill disposal.
Packing and Delivery
1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
Why Choose Us?
1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.
2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
