Product Details:
|
| Installation Angle: | 0-25° | Screw Diameter: | Φ185 Mm |
|---|---|---|---|
| Screw Rotating Speed: | 12-16 R/min | Materials: | SUS304 Or SUS316 |
| Warranty: | 2 Years | Service Life: | >10 Years |
| Operation: | 24 Hours Automatic Running | Feature: | Shaftless |
| Application: | Waste Water Treatment | ||
| High Light: | stainless steel screw conveyor,horizontal screw conveyor |
||

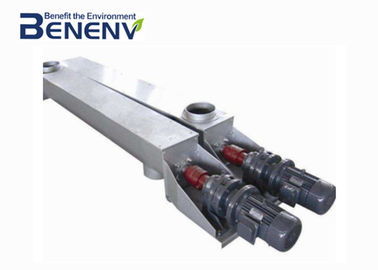

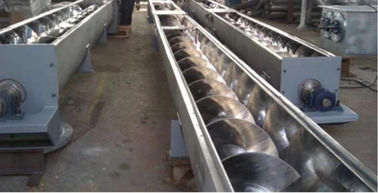

Factory Custom shaftless Screw Conveyor For Sludge And Waste
Introduction
Model & Installation Dimensions
Technical parameters
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 | ||
| Screw diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 | ||
| Casing pipe diameter | 180 | 219 | 273 | 351 | 402 | 500 | ||
| Operating angle(α) | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ||
| Max delivery length(m) | 12 | 13 | 16 | 18 | 22 | 25 | ||
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 | ||
|
Motor |
Model | L≤7 | Y90L-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y160M-4 | Y160M-4 |
| Power | 1.5 | 2.2 | 3 | 5.5 | 11 | 11 | ||
| Model | L>7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160L-4 | Y160L-4 | |
| Power | 2.2 | 3 | 4 | 7.5 | 15 | 15 | ||
Main Features
Installation Drawing
Product Details
| Certification | SGS/CE/ISO 9001 |
| Horizontal Rotation speed | 18rpm |
| Incline Rotation speed | >18rpm |
| Material | SS304/316 |
| Screw diameter | 380mm |
| Conveying length | customize |
| Motor Power | 1.1-3KW |
| Operation | Full automatic |
| Protection Level | IP55 F |
| Warranty | 1 year |
| Product Keywords | slurry screw conveyor,sludge transportion,sludge cake conveyor |
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
