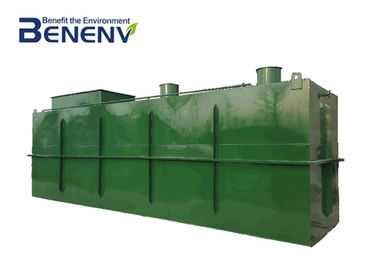

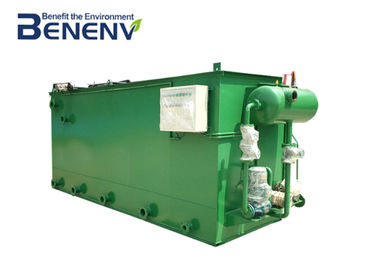

Compact Wastewater Sanitary Sewage Treatment Factory Package MBR Biological System
Industrial package mobile compact waste water treatment machine waste water treatment system sewage treatment plant.
Using international advanced membrane bioreactor technique ,and combined the membrane separation technique ,biotreatment technique ,and intelligent control technique .
The production of the equipment is standard ,serial ,modularized .
The integrated and modularized product with the treatment capacity of 50m 3/days ,150m3/day,200m3/day can be easily installed,utilized immediately,and convenient to be moved,combine and assembled.
||Reference outside size(L*W*H) mm
Several usage methods of integrated sewage treatment equipment:
1. Be able to treat the comprehensive wastewater of living system and its similar organic wastewater;
2. It is made of glass fiber reinforced plastic and stainless steel, with excellent properties of corrosion resistance and anti-aging, and its service life is over 50 years;
3. The whole set of equipment is simple in construction and easy in operation. All the mechanical equipment is controlled by automation.
1.Designed Integrated and modularized ,fast shipment , and short construction time.
2.Can be moved conveniently ,and high adjust ability
3.Modularized assembly , can be combined with each other for upgrade.
4.Monitored online , highly automatic .
5.Operating without noise , smell ,and environment pollution.
6.Less land occupied ,low energy consumption ,and low operation cost.
1. Gravity is used to make the suspended sludge with a greater proportion of water in the outlet water of the contact oxidation bed sink to the bottom of the pool, so as to remove it from the water and ensure better effluent water quality;
2. Settling to the bottom of the sludge and automatically returning to the contact oxidation bed to maintain the sludge concentration of the contact oxidation bed.
3. The disinfection tank USES solid chlorine to disinfect the water, which can effectively kill bacteria, escherichia coli, viruses and other pathogenic microorganisms in the water. The treated water is clear and transparent, with no odor.
Installation and maintenance:
1. Foundation: If WSZ series equipment is placed above the floor, only a concrete floor with the same shape as the equipment needs to be prepared as the foundation. The foundation pressure must be greater than 4T/m2, and it should be horizontal and smooth. If the equipment is buried below the floor, the elevation of the foundation shall be less than or equal to the elevation of the equipment and no water is allowed to accumulate in rain.
2, Installation: According to the installation diagram in place, each box in place in turn, the position and direction of the box should not be put wrong, spacing each other should be accurate, and connected to the pipeline. Fill the equipment with clean water and check whether there is any leakage in the pipes. If there is no leakage, cover the box with soil until the equipment checks the holes and level the ground. Connect the control line of the electric control box to the water pump, connect the electric control box to the power supply, pay attention to the fan, motor steering, and the direction indicated by the fan.
Application of integrated sewage treatment equipment:
1. Hotels, restaurants and nursing homes;
2. Residential communities, villages and market towns;
3. Station, expressway service area, harbor wharf and ship;
4. Factories, mines, troops, tourist spots and scenic spots;
5. Industrial organic wastewater similar to domestic sewage, such as food industry.
Packing and Delivery
1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
2.We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
