|Filter Area:||40 M²||Pressure:||1 MPa|
|Materials:||TPE||Service Life:||5 Years|
|Warranty:||2 Years||Usage:||Sewage Treatment、Sludge Treatment|
plate and frame filter press,
membrane filter press
BN90 Package Sewage Treatment Plant MBR for Domestic and Industrial Sewage,Mini Sewage Treatment Plant,Aerobic Pond

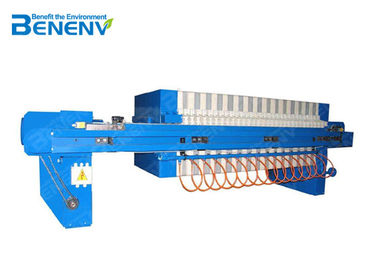

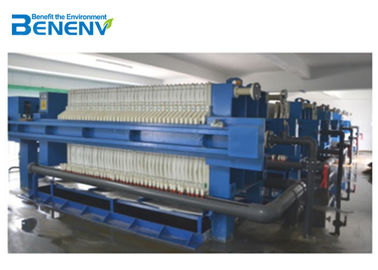

Plate and frame filter press is a kind of intermittent solid-liquid separation equipment, which is composed of filter plate and filter frame. Under the pressure of the feed pump, the feed liquid is sent to each filter chamber, and the solid and liquid are separated by the filter medium. The equipment is widely used in chemical industry, dyestuff, petroleum, ceramics, pharmaceuticals, sugar, starch, paint, metallurgy and sewage treatment. It has many advantages, such as good separation effect, wide application scope, simple operation and less investment, especially for the separation of fine materials.
Van filter plate
1. The filter plate is made of reinforced polypropylene, with overall variable cross-section design, so that its flow resistance is small, the flow rate is fast, and the filtering efficiency is higher than that of the same filter plate;
2. Adopt special raw material formula and pressing process, equipped with 4000 ton high pressure hydraulic press, and the mechanical performance indexes of the filter plates are higher than the relevant national standards;
3. The filter plate is made of TPE elastomer and alkali free glass fiber polypropylene, which makes the filter plate have the elasticity of rubber filter plate, and enhance the toughness and rigidity of polypropylene filter plate. After being processed by CNC machining center, the flatness of filter plate is less than 25 μ m, which makes the filter plate have good sealing performance when it is pressed, and there is no spray or leakage when it is fed.

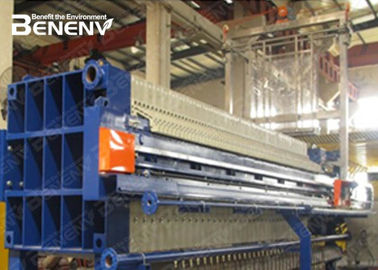

Automatic plate pulling system
1. The automatic plate pulling system is composed of motor, manipulator, transmission mechanism, suspension device, frequency conversion system, etc;
2. The plate pulling system is driven by a motor, which drives the transmission chain to drive the manipulator to move and pull the filter plates one by one. The automatic reversing of manipulator is controlled by the time set in PLC or relay timer;
3. The pull plate suspension device adopts the humanized design - push rod / remote control, which can control the start and stop actions in the process of pulling plate at any time, to ensure personal safety and smooth unloading of the pull plate. (or remote control system, which can control the action of pulling plate through the start and stop buttons of remote control system, and can control the start and stop of pulling plate at any position, convenient and reliable);
4. The force and speed of pulling plate can be adjusted by frequency conversion system, which is suitable for different materials and working conditions;
Automatic Flap System
The flap driving mechanism of filter press can be divided into low-speed motor driving and hydraulic driving. Through the linkage mechanism, the upper and lower flaps of the flap mechanism can be opened or closed at different speeds, so as to play the role of receiving liquid.
After the filter plate is compressed, the filtration process begins, and the flap is in a closed state. During the filtration process, the filtrate leaked from the sealing surface of the filter plate flows into the liquid receiving tank along the flap surface due to the capillary action of the filter cloth. After the filtration, when the filter plate is about to release, the flap can guide the residual filtrate in the filter chamber into the liquid receiving tank to ensure that the filter cake is not subject to secondary pollution; after the filter plate is pulled out, the flap is in the open state, and the filter cake can be directly discharged into the hopper.
Compared with the original tray, it has the advantages of saving space, high automation, avoiding pollution of filter cake (filtrate), and more perfect function.

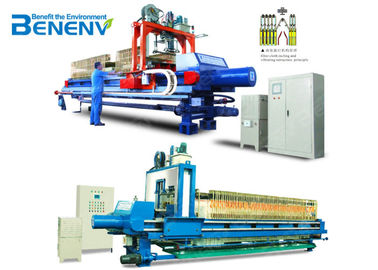

Automatic cleaning device
The automatic cleaning device of filter cloth of filter press mainly uses high-pressure water to wash the remaining materials in the pore of filter cloth, so as to restore the permeability of filter cloth and improve the filtering speed and service life of filter cloth.
The filter cloth automatic cleaning device is highly automatic, which reduces the labor intensity of manual cleaning of filter cloth.
Urban sewage sludge, tap water sludge, dredging sludge, industrial sludge, industrial solid waste,Chlor alkali, inorganic salt, rayon viscose, glycerin, silica, dye, pigment, silicic acid, sodium sulfate,Manganese sulfate, iron hydroxide, titanium dioxide, fluorine chemical industry, lithium chemical industry, silicon carbide, nickel cobalt chemical industry,Non ferrous metals, metal tailings, clean coal, tail coal, non-metallic ore
Wine, rice wine, alcohol, edible oil, citric acid, fruit juice pectin, soy sauce, syrup,All kinds of starch, concentrated soup, seaweed gum, beer wort, palm oil, beet sugar, sucrose,Pharmaceutical intermediates, APIs, Chinese patent medicines, fermentation broth, enzyme preparations
