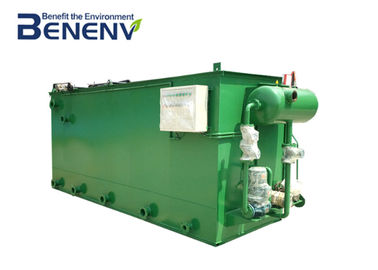

High Efficiency Compact Wastewater Treatment System Short Process Flow

High Efficiency Compact Wastewater Treatment System Short Process Flow
High Efficiency Compact Wastewater Treatment System Short Process Flow High Efficiency Compact Wastewater Treatment System Short Process Flow

Large Image :  High Efficiency Compact Wastewater Treatment System Short Process Flow

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BENENV
Certification: SW17Q10916R0S
Model Number: CWT926
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Export polywood
Delivery Time: 3-6 weeks
Supply Ability: L/C, D/A, D/P, T/T, Western Union, MoneyGram

High Efficiency Compact Wastewater Treatment System Short Process Flow

Description
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Application:: Activated Sludge Dewatering, Especially For Oily Sludge
Certificate: ISO 9000, CE Certificate Operation:: Automatic
Electrical Components:: Schneider, Omron Warranty:: 2 Years
Service Life:: 15 Years Brand Origin:: Japan
High Light:

package sewage treatment plant

,

domestic wastewater treatment plant

Compact Wastewater Treatment System Sewage Disposal Effluent Treatment


1. The integrated sewage treatment equipment is buried below the surface, and the surface above the equipment can be used as greening or other land, without the need for building houses, heating and heat preservation.



2. The secondary biological contact oxidation treatment process adopts pushed-flow biological contact oxidation, and the treatment effect is better than the fully mixed biological contact oxidation tank or the two-stage series fully mixed biological contact oxidation tank. Compared with the activated sludge tank, it has a smaller volume, stronger adaptability to water quality, better impact load resistance, stable effluent water quality and no sludge expansion. The new type of elastic stereoscopic packing is used in the tank, with large specific surface area, easy to hang the membrane of microorganisms, and demembrane. Under the same organic load condition, the removal rate of organic compounds is high, which can improve the solubility of oxygen in the air in water.



3. The biological contact oxidation method is adopted in the biochemical tank. The volume load of the filler is relatively low.


4. The deodorization method of the buried domestic sewage treatment equipment includes conventional high-altitude exhaust and soil deodorization measures.



5. The whole equipment processing system is equipped with fully automatic electrical control system and equipment fault alarm system, which runs reliably. Usually, it does not need special personnel to manage, but only needs timely maintenance of the equipment.



Model Water capacity(m3/h) Reference outside size(L*W*H) mm Qty(set) Weight(T) Air volume(m3/min)
AUMBR-0.5 0.5 3000*1500*2000







1

1.5 0.15
AUMBR-1 1 4000*1500*2000 1.7 0.3
AUMBR-2 2 5000*2000*2000 2.5 0.6
AUMBR-3 3 7000*2000*2500 3.5 0.9
AUMBR-5 5 10000*2500*2500 4.5 1.5
AUMBR-10 10 16000*2500*2500 8.4 3
AUMBR-20 20 16000*2500*2500 2 16.8 6



Several usage methods of integrated sewage treatment equipment:

1. Be able to treat the comprehensive wastewater of living system and its similar organic wastewater;

2. It is made of glass fiber reinforced plastic and stainless steel, with excellent properties of corrosion resistance and anti-aging, and its service life is over 50 years;

3. The whole set of equipment is simple in construction and easy in operation. All the mechanical equipment is controlled by automation.

High Efficiency Compact Wastewater Treatment System Short Process Flow 0

FEATURES

1. Short process flow, high efficiency and energy saving.
2. Small occupation area, less infrastructure construction.
3. Short project cycle, low investment cost.
4. Simple debug before use.
5. High-intelligentization, high-automaticity .
6. Stable treated water with high quality.
7. Noiselessness during operation.
8. No odor, no excess sludge.

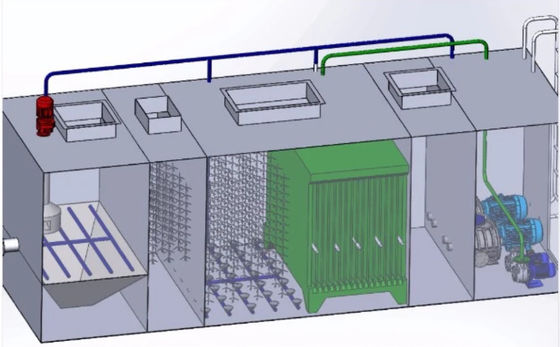

Working Principle

1. Gravity is used to make the suspended sludge with a greater proportion of water in the outlet water of the contact oxidation bed sink to the bottom of the pool, so as to remove it from the water and ensure better effluent water quality;

2. Settling to the bottom of the sludge and automatically returning to the contact oxidation bed to maintain the sludge concentration of the contact oxidation bed.

3. The disinfection tank USES solid chlorine to disinfect the water, which can effectively kill bacteria, escherichia coli, viruses and other pathogenic microorganisms in the water. The treated water is clear and transparent, with no odor.

Installation and maintenance:

1. Foundation: If WSZ series equipment is placed above the floor, only a concrete floor with the same shape as the equipment needs to be prepared as the foundation. The foundation pressure must be greater than 4T/m2, and it should be horizontal and smooth. If the equipment is buried below the floor, the elevation of the foundation shall be less than or equal to the elevation of the equipment and no water is allowed to accumulate in rain.

2, Installation: According to the installation diagram in place, each box in place in turn, the position and direction of the box should not be put wrong, spacing each other should be accurate, and connected to the pipeline. Fill the equipment with clean water and check whether there is any leakage in the pipes. If there is no leakage, cover the box with soil until the equipment checks the holes and level the ground. Connect the control line of the electric control box to the water pump, connect the electric control box to the power supply, pay attention to the fan, motor steering, and the direction indicated by the fan.

High Efficiency Compact Wastewater Treatment System Short Process Flow 1
High Efficiency Compact Wastewater Treatment System Short Process Flow 2

Application of integrated sewage treatment equipment:

1. Hotels, restaurants and nursing homes;
2. Residential communities, villages and market towns;
3. Station, expressway service area, harbor wharf and ship;
4. Factories, mines, troops, tourist spots and scenic spots;
5. Industrial organic wastewater similar to domestic sewage, such as food industry.

Packing and Delivery


1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.

2.We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



High Efficiency Compact Wastewater Treatment System Short Process Flow 3



Why Choose Us?



1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.

2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.

3. We only use the best parts from best supplier.

4. We have our own R&D center and complete manufacture system.
