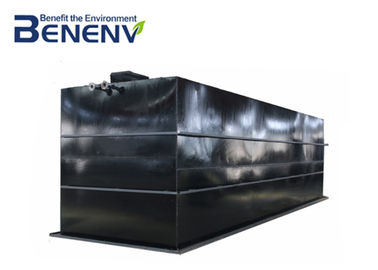

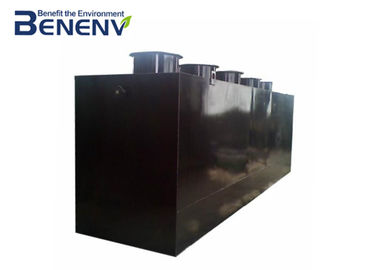

Compact Wastewater Treatment System To Purify The Water From Hospital Sewag
Biological treatment technology on hospital sewage treatment equipment, in the life wastewater treatment plant in China and on the basis of operating experience, combined with their own scientific research and engineering practice, design a kind of can be set up ground of complete sets of organic wastewater treatment plant, removal of BOD5, COD and NH3 - N in one, with stable and reliable technical performance, good treatment effect, saving investment, automatic operation, maintenance, easy to operate, don't cover surface area, don't need to build a house, do not need to heating of the heat preservation, etc. Flowers and grass can be planted on the ground, without affecting the surrounding environment.
||Reference outside size(L*W*H) mm
Several usage methods of integrated sewage treatment equipment:
1. Be able to treat the comprehensive wastewater of living system and its similar organic wastewater;
2. It is made of glass fiber reinforced plastic and stainless steel, with excellent properties of corrosion resistance and anti-aging, and its service life is over 50 years;
3. The whole set of equipment is simple in construction and easy in operation. All the mechanical equipment is controlled by automation.
1. The underground surface area of the equipment can be used as green land to save the floor space for the hospital.
2. The integrated sewage equipment is made of anti-corrosion and anti-oxidation materials, which has a long service life and saves operating costs for the hospital.
3. With the combination of biological contact oxidation tank and layer upon layer filtration and disinfection device, the sewage treatment effect is good and the pathogen transmission problem is solved.
4. The equipment has a good deodorization effect and produces a small amount of sludge, which will not cause other pollution hazards to the environment.
5. Fully automatic control system, installation of damage alarm system, no manual supervision, save labor input.
1. Gravity is used to make the suspended sludge with a greater proportion of water in the outlet water of the contact oxidation bed sink to the bottom of the pool, so as to remove it from the water and ensure better effluent water quality;
2. Settling to the bottom of the sludge and automatically returning to the contact oxidation bed to maintain the sludge concentration of the contact oxidation bed.
3. The disinfection tank USES solid chlorine to disinfect the water, which can effectively kill bacteria, escherichia coli, viruses and other pathogenic microorganisms in the water. The treated water is clear and transparent, with no odor.
Installation and maintenance:
1. Foundation: If WSZ series equipment is placed above the floor, only a concrete floor with the same shape as the equipment needs to be prepared as the foundation. The foundation pressure must be greater than 4T/m2, and it should be horizontal and smooth. If the equipment is buried below the floor, the elevation of the foundation shall be less than or equal to the elevation of the equipment and no water is allowed to accumulate in rain.
2, Installation: According to the installation diagram in place, each box in place in turn, the position and direction of the box should not be put wrong, spacing each other should be accurate, and connected to the pipeline. Fill the equipment with clean water and check whether there is any leakage in the pipes. If there is no leakage, cover the box with soil until the equipment checks the holes and level the ground. Connect the control line of the electric control box to the water pump, connect the electric control box to the power supply, pay attention to the fan, motor steering, and the direction indicated by the fan.
Application of integrated sewage treatment equipment:
1. Hotels, restaurants and nursing homes;
2. Residential communities, villages and market towns;
3. Station, expressway service area, harbor wharf and ship;
4. Factories, mines, troops, tourist spots and scenic spots;
5. Industrial organic wastewater similar to domestic sewage, such as food industry.
Packing and Delivery
1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Why Choose Us?
1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.
2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
