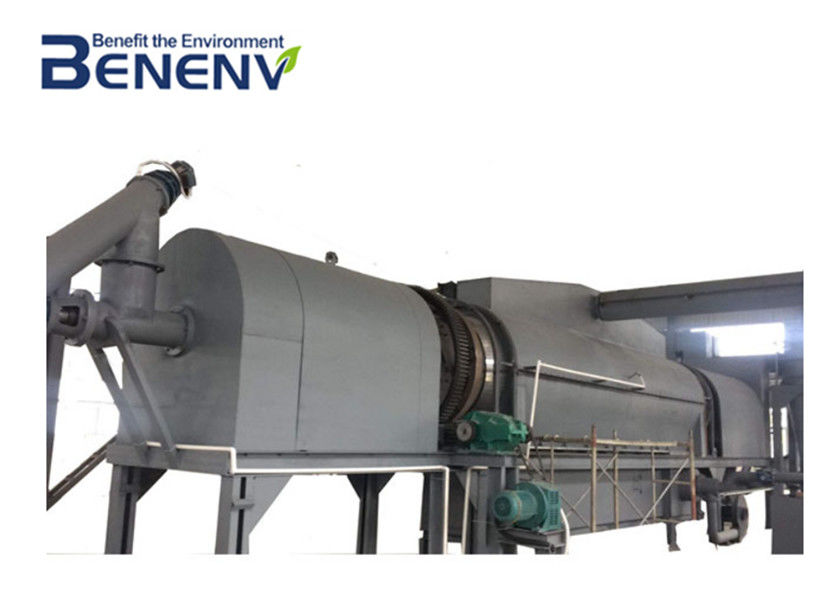

Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment

Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment
Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment

Large Image :  Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment

Product Details:
Place of Origin: Japan
Brand Name: BENENV
Certification: SW17Q10910R0S
Model Number: BMT-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Container
Delivery Time: 6-10 weeks
Payment Terms: T/T
Supply Ability: 10 Sets per Years

Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment

Description
Water Vaporation: 50-2500 Kg/hr Size: L4800*W3200*H3000 Mm
Power: 15 KW Materials: SUS304 Or Q235
Motor Brand: SEW Electrical Components Brand: Schneider, Omron, Siemens
Tail Gas Treatment: Spray Tower,Fabric Filter , Quench Tower Energy Sources: Oil , LNG , LPG
Highlight:

carbonizer machine

,

carbonization machine

2019 Hot Continuous Sludge Waste Treatment Carbonization Furnace



Brief Introduction
Sludge drying and carbonization is a newly developed sludge recycling technology by Benenv. It is the result of the painstaking efforts of Japanese experts and Chinese professors in incineration, drying, carbonization field. This technology integrates the advantages of sludge drying and carbonization, and is both stable and dioxin free during the treatment process. During the process, drying is through direct heating while carbonization is through medium carbonization, which produces high quality products.



Technological principle

The carbonization furnace is a horizontal rotating body, which uses indirect heating method. The hot blast furnace at its side generates high temperature and heats the rotatable furnace body. The materials in the furnace body decompose under low oxygen condition, producing a large amount of retort gas, which is led into the combustion chamber by the induced draft fan for secondary combustion. The materials are transported from the end of the furnace body, and the output end is provided with belt There is a product condensation and collection system to collect the product after cooling; the high-temperature flue gas from combustion is pumped to the super dryer for drying sludge. In terms of tail gas treatment, when the temperature in the combustion furnace reaches above 800 ℃, the dry distillation gas can be completely burned to achieve harmless treatment. After the exhaust gas is cooled by a water-cooled heat exchanger, it is dedusted by a cyclone and discharged into the atmosphere.

Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment 0



Process Feature

No bound issue
The sludge is very sticky, and has a special adhesive-phase reaction during the drying process (water content around 40%-60%). During this short period, sludge is easily caking, with hard surface, yet still mud state inside. There is a special disintegrating and mixing device inside super dryer, which rotates with high speed during drying process, and breaks the adhesive phase sludge into small particles, thus increase the drying efficiency.



No harmful gas emissions
With advanced exhaust gas treatment system, dioxins produced during carbonization can be completely decomposed, via cyclone, caustic tower, bag filter, activated carbon adsorption process as complete treatment system. Exhaust gas is highly purified, definitely better than the national emission standards.



Low running costs, energy recyclable
After medium temperature carbonization, dried sludge generates large quantities of dry distillation gas under anaerobic condition. The gas is introduced into the combustion chamber of carbonizer as heat source. The high-temperature fume is pumped into dryer as the heat source. Therefore, running cost is low while thermal energy can be utilized and recyclable.

Total sludge volume reduced by more than 90%
After dried by super drier initially, and then carbonized by carbonizer with a further volume reduction; finally, the volume of the sludge can be reduced by 90%.



Simple operation, short processing time, small footprint
The entire process is fully automatic, and in accordance with the explosion-proof safety system which is designed to reduce human activities on the environment damage. Equipment is with small size, small footprint, short processing time, high reliability, suitable for construction operations in harsh environments. The overall level of equipment and process are leading the industry.



Harmless carbonized product with a wide range of uses
After the drying and medium temperature carbonization, sludge ultimately becomes stable particles with size of 1-5mm. Meanwhile, heavy metals have been solidified and the problem of heavy metals in sludge is solved fundamentally.



Model Selection

Model No. BRD-30 BRD-150 BRD-300 BRD-500 BRD-1000 BRD-1500
Processing capacity(kg/h) 30 150 300 500 1000 1500
Energy consumption(kW) 15 30 60 150 300 450
Machine weight(ton) 3.5 5.5 8.3 20.2 37.2 62.3
General
dimension
W(mm) 3200 3800 4100 8700 10400 11500
L(mm) 4800 5300 7400 10800 13200 15600
H(mm) 3000 3200 3600 4200 5300 6500



Packing and Delivery



1. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.



2. We also support 20',40' container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Fully Automatic Continuous Carbonization Furnace Sludge Waste Treatment 1


Below is BENENV Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
